300SCFM Instrument Air Skid with -40F Dew Point ASME B31.3

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: IA

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood or other type

Delivery Time: 25work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    nitrogen Instrument Air Skid, On Site Instrument Air Skid, Nitrogen skid mounted equipment


Product Name:	Instrument Air Package	Capacity:	300SCFM
Dew Point:	Below-40℉	Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1	Pipeline Standard:	ASME B31.3
Power:	According To Design	Size:	According To Design
Weight:	According To Design	IA TANK:	Option

Product Name:	Instrument Air Package
Capacity:	300SCFM
Dew Point:	Below-40℉
Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1
Pipeline Standard:	ASME B31.3
Power:	According To Design
Size:	According To Design
Weight:	According To Design
IA TANK:	Option

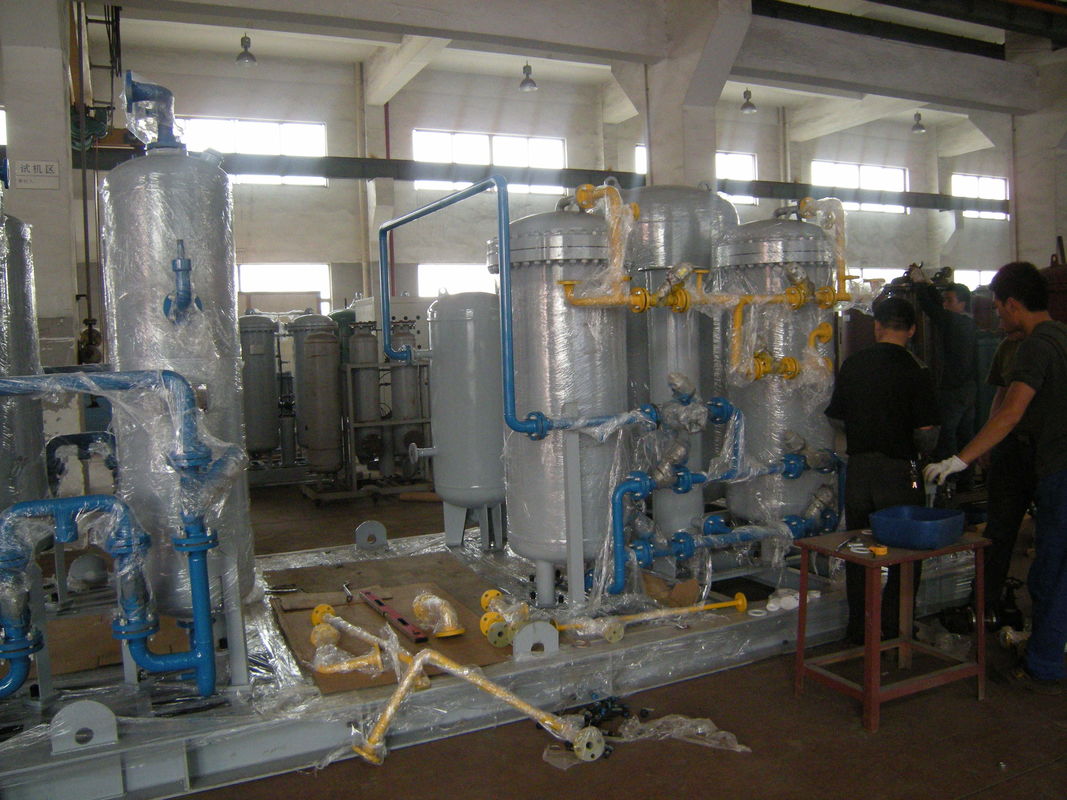

300SCFM Instrument Air Skid with -40F Dew Point ASME B31.3

On Site Nitrogen Instrument Air Skid Mounted Equipment 300SCFM

Product Attributes

Attribute	Value
Product Name	Instrument air package
Capacity	300SCFM
Dew point	Below-40℉
Material	CS with galv or SS
Vessel standard	ASME SEC VIII DIV.1
Pipeline standard	ASME B31.3
Power	According to design
Size	According to design
Weight	According to design
IA TANK	Option

Professional 300 SCFM Instrument Air Package (-40°F Dew Point) | GASPU Technology

Deliver Clean, Dry, Reliable Instrument Air with Our Integrated Skid Solution

As a leading manufacturer of industrial air systems, we specialize in high-performance, skid-mounted Instrument Air Packages. Our 300 SCFM capacity unit, guaranteed to deliver air with a pressure dew point below -40 °F (-40°C), is engineered for critical applications where moisture-free, contaminant-free air is non-negotiable. Built on proven GASPU Technology, our packages offer unmatched stability and reliability worldwide.

Product Features & Characteristics:

1. High Integration & Plug-and-Play Design

Our skid integrates all essential components onto a single, robust steel platform:

Air Compressor (Sized for 300 SCFM)
Precision Filtration System (Multi-stage)
High-Efficiency Air Dryer (Achieving <-40°F PDP)
Advanced Redundant Control System
Valves, Piping (ASME B31.3 compliant), Instruments
Integrated Instrument Air (IA) Receiver Tank (Optional Plant Air Tank external)
Electrical Components & Wiring Only power supply connections are required on-site for immediate operation.

2. Superior Air Quality Guaranteed

The system is meticulously designed to process ambient air, delivering instrument air meeting stringent standards:

Dew Point: Consistently below -40 °F (-40°C).
Oil Content: Extremely low levels (target <<0.01 ppm).
Particulate Removal: High-efficiency filtration down to sub-micron levels (target <0.01 µm).

3. Robust Construction & Compliance

Materials: Carbon Steel (Galvanized or Painted) or Stainless Steel options.
Pressure Vessels: Fabricated to ASME Sec VIII Div. 1 standards.
Piping: Designed and installed per ASME B31.3.
Skid Structure: Engineered for durability and ease of transport/relocation.

4. GASPU Technology Advantage

Our proprietary design and integration approach ensure:

Exceptional Reliability: Proven by numerous stable, long-running installations globally.
Optimized Performance: Components are perfectly matched for efficient 300 SCFM operation.
Redundancy: Critical control systems feature redundancy for continuous operation.

Key Advantages of Choosing Our Skid-Mounted Solution:

Reduced Site Work & Faster Commissioning: Up to 90% of installation and testing is completed in our controlled factory environment, drastically cutting field labor, risks, and project timelines.
Enhanced Quality & Consistency: Factory assembly ensures precise alignment, rigorous testing (including dew point verification), and consistent quality unmatched by field construction.
Simplified Logistics & Flexibility: The integrated skid is designed for easy transport and relocation, offering excellent flexibility for remote sites or future moves.
Lower Total Cost of Ownership (TCO): Reduced installation time/costs, minimized startup issues, and reliable operation contribute to significant long-term savings.
Single-Source Responsibility: One vendor for the entire package streamlines procurement, warranty, and support.

Typical Specifications (300 SCFM @ <-40°F PDP):

Parameter	Specification / Note
Product Name	Skid-Mounted Instrument Air Package
Technology	GASPU
Capacity	300 Standard Cubic Feet per Minute (SCFM)
Dew Point	Guaranteed Below -40 °F (-40°C) Pressure Dew Point
Air Quality	Oil-Free (Class 0), Particulate Free (ISO 8573-1)
Design Standard	ASME B31.3 (Piping), ASME Sec VIII Div. 1 (Vessels)
Construction	Carbon Steel (Galv/Painted) or Stainless Steel (SS)
IA Receiver	Included on Skid (ASME Certified)
Plant Air Tank	Optional (Typically Supplied External to Skid)
Control System	Advanced, Redundant PLC-based System
Power	Custom Designed (Based on Final Component Selection)
Footprint/Weight	Optimized Design (Final Dimensions/Weight TBD)

Frequently Asked Questions (FAQ):

1. What is the lead time for a 300 SCFM package?

Lead times vary based on final configuration, component brands, and current workload. Generally, expect 12-20 weeks from order placement to shipment for a standard design. Customizations may extend this. Contact us for a specific project quote and timeline.

2. Can we specify brands for major components (Compressor, Dryer, etc.)?

Absolutely! Component brand selection significantly impacts performance and price. We work with leading global manufacturers (Atlas Copco, Ingersoll Rand, Kaeser, Hankison, Parker, etc.) and can tailor the package to your preferred brands or budget requirements. Please inform us of any preferences early in the quoting process.

3. How much on-site work is required?

Minimal. The package is fully assembled, wired, and factory-tested. On-site work primarily involves:

Placing the skid on a level foundation.
Connecting the main electrical power supply.
Connecting the outlet instrument air header to your plant distribution.
(Optional) Connecting the inlet to an upstream Plant Air Tank if supplied.
Final commissioning checks.

4. Is maintenance difficult on a skid-mounted unit?

No. Our skids are designed with maintenance access in mind. Filters, drains, instrumentation, and critical components are readily accessible. Clear access panels and walkways are incorporated where necessary. Detailed manuals and training are provided.

5. Why choose a skid-mounted package over field-erected equipment?

Skid mounting offers superior quality control, faster installation, reduced site safety risks, lower overall project costs (TCO), proven reliability, and greater future flexibility for relocation. It's the modern, efficient solution for critical utilities like instrument air.

Ideal Applications:

Our 300 SCFM Instrument Air Packages are the trusted choice for demanding environments like Natural Gas Liquefaction (LNG), Wellhead Gas Processing, Decarbonization Units, Sulfur Recovery Units (SRU), Petrochemical Plants, Power Generation, and any remote or modular facility requiring reliable, ultra-dry instrument air.

Get a Precise Quote & Experience the GASPU Difference:

As a non-standard product, we tailor each package. Provide your detailed requirements and datasheet for a comprehensive proposal featuring the best value components meeting your -40°F dew point and 300 SCFM needs. Contact us today to ensure your critical processes have the clean, dry, reliable air they demand.
