ASME-Certified Instrument Air Skid with Redundant PLC Control

The Instrument Air Skid is a fully integrated, skid-mounted system designed to generate, treat, and distribute high-purity compressed air for critical industrial applications. Engineered with ASME-certified pressure vessels (ASME VIII.1) and pipelines (ASME B31.3), this modular unit ensures compliance with stringent safety and quality standards.

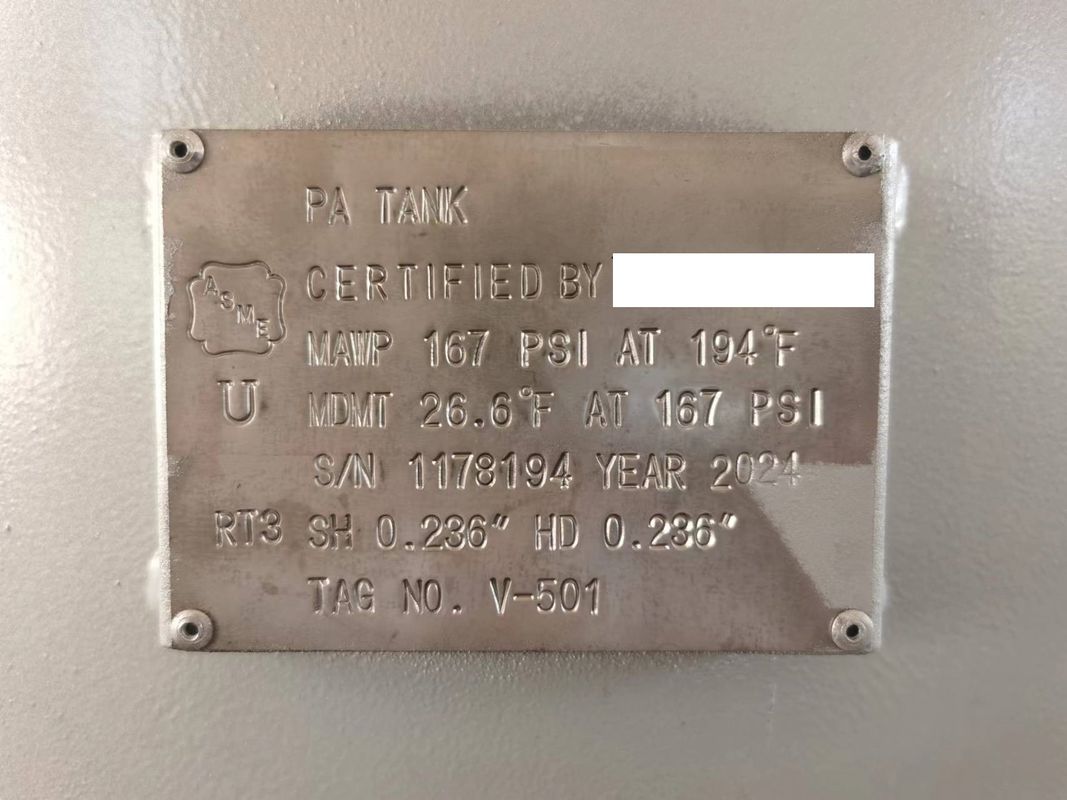

• ASME-Certified Components: Pressure vessels adhere to ASME VIII.1 standards and pipelines follow ASME B31.3 for structural integrity
• High Purity Output: Compressed air with dew point below -40°C, oil content <0.01ppm, and particle size <0.01μm
• Redundant Control System: PLC-based control panel (Siemens or Allen-Bradley) with redundant CPUs and IO modules
• Modular Design: Fully assembled on a skid for easy transportation and installation
• Material Versatility: Constructed with carbon steel (galvanized) or stainless steel for corrosion resistance

• Reduced On-Site Construction: Factory-assembled and pre-tested, cutting installation time by up to 60%
• Enhanced Reliability: Factory testing ensures seamless component integration and reduced leak risks
• Cost Efficiency: Streamlines engineering, procurement, and construction processes
• Flexibility: Skid-mounted design allows for easy relocation and future upgrades
