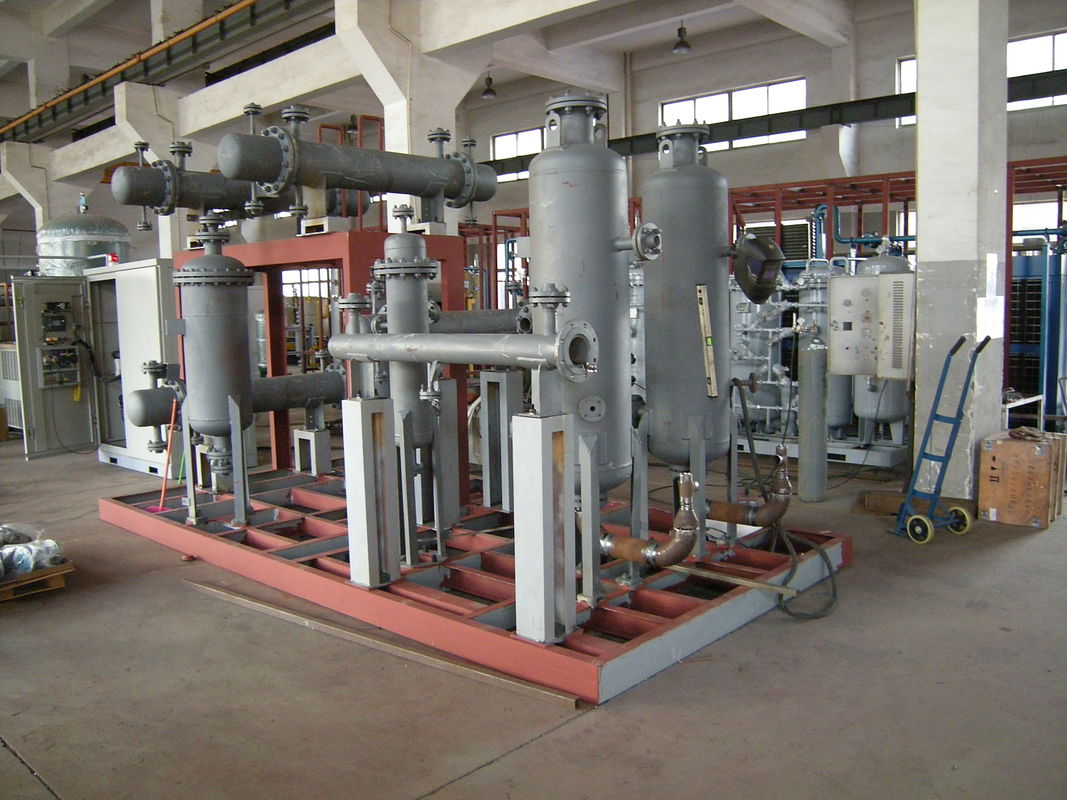

ASME Natural Gas Dryer Skid 200-5000SCFM Below-40℉ Dew Point

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: ISO

Model Number: GND

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood or other type

Delivery Time: 100work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    Instrument Air Skid Gas Dryer, ASME Instrument Air Skid, ASME Natural Gas Dryer


Product Name:	Natural Gas Dryer	Capacity:	200-5000SCFM
Dew Point:	Below-40℉	Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1	Pipeline Standard:	ASME B31.3
Power:	According To Design	Size:	According To Design
Weight:	According To Design	IA TANK:	Option

Product Name:	Natural Gas Dryer
Capacity:	200-5000SCFM
Dew Point:	Below-40℉
Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1
Pipeline Standard:	ASME B31.3
Power:	According To Design
Size:	According To Design
Weight:	According To Design
IA TANK:	Option

ASME Natural Gas Dryer Skid 200-5000SCFM Below-40℉ Dew Point

Low Dew Point Instrument Air Skid Natural Gas Dryer ASME Standard

Product Specifications

Attribute	Value
Product Name	Natural gas Dryer
Capacity	200-5000SCFM
Dew point	Below-40℉
Material	CS with galv or SS
Vessel standard	ASME SEC VIII DIV.1
Pipeline standard	ASME B31.3
Power	According to design
Size	According to design
Weight	According to design
IA TANK	Option

Product Overview

Our Low Dew Point Natural Gas Dryer packages are engineered to eliminate moisture-related risks in natural gas systems by delivering ultra-dry natural gas with stable performance. Designed as skid-mounted systems, they integrate all essential components into a compact, pre-assembled unit for quick installation and immediate operation.

Key Features

Skid-Mounted Integration: All components pre-assembled on a single steel platform for minimal on-site construction and easy relocation
Low Dew Point Performance: Achieves exceptional moisture removal (below -40°F) to prevent hydrate formation and corrosion
Plug-and-Play Operation: Intuitive control system automates drying cycles for reduced manual intervention
Compact & Durable Design: Constructed with high-grade steel and corrosion-resistant materials for harsh environments

Key Advantages

Reduces project timeline by up to 60% compared to traditional systems
Lowers on-site labor and construction costs with energy-efficient components
Equipped with redundant controls and safety interlocks for continuous operation
Customizable to specific pressure, capacity, and dew point requirements

Technical Specifications

Model	Pressure (Mpa)	Capacity (Nm³/min)	Power (KW)	Dimensions (L×W×H, mm)	Weight (KG)
GND-50	0.6-1.0	5	2	780×720×2100	300
GND-100	0.6-1.0	10	3	980×850×2000	480
GND-200	0.6-1.0	20	6	1190×920×2150	1200
GND-500	0.6-1.0	50	15	2000×1600×2600	2600
GND-2000	0.6-1.0	200	63	3000×2300×3300	7500

Note: Custom models available upon request. Detailed datasheets provided post-project specification review.

Frequently Asked Questions

What is the minimum dew point achievable?

Dew point is customizable based on project needs. Standard models can reach -40°C, with options for lower dew points (-60°C or below) for specialized applications.

How long does installation take?

Skid-mounted units are pre-tested at our factory. On-site installation typically takes 1-3 days, depending on model size and site conditions.

Can the dryer handle fluctuations in inlet gas flow?

Yes, our systems include buffer tanks and adjustable controls to accommodate flow variations within the rated capacity range.

What maintenance is required?

Routine maintenance includes filter replacement (every 6-12 months) and periodic inspection of valves/seals. The system's modular design allows for easy component access.

Is the dryer suitable for offshore or corrosive environments?

Yes, we offer marine-grade and corrosion-resistant options for offshore, coastal, or high-humidity applications.

Our Low Dew Point Natural Gas Dryer combines innovation, efficiency, and reliability to meet the diverse needs of the natural gas industry. With skid-mounted convenience, customizable performance, and global support, it is the preferred choice for operators seeking to minimize risks, reduce costs, and ensure uninterrupted gas supply.

"GASPU technology—where quality meets efficiency."

For detailed datasheets or custom inquiries, please provide your project specifications, and our engineering team will deliver a personalized proposal.
