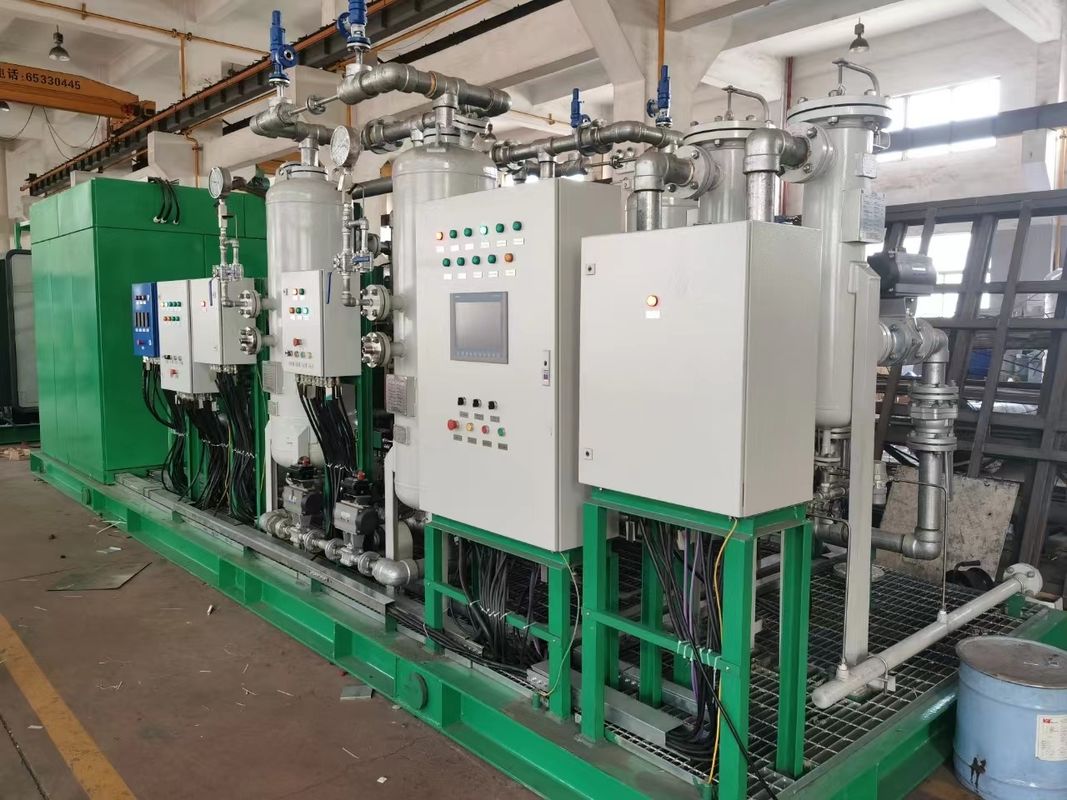

Custom Instrument Air Skid with HMI Touch Screen 50 HP Compressor

Name: Custom Instrument Air Skid with HMI Touch Screen 50 HP Compressor
Brand: Suzhou Gaopu Ultra pure gas technology Co.,Ltd
SKU: NG -100
Price: 10000 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: ccs ce

Model Number: NG -100

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10000/set

Packaging Details: plywood and other types

Delivery Time: 75 working

Payment Terms: T/T

Supply Ability: 2set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            Oil and Gas Instrument Air Skid, Customized Instrument Air Skid, service Instrument Air Skid


Air Dryer Type:	PSA And Refrigerated	Control Power:	110-240V 50/60Hz 0.5kw
Model:	IASK-2020	Control Panel:	HMI Touch Screen
Material:	Carbon Steel	Size:	Customizable
Compressor Capacity:	50 HP	Operating Pressure:	100 Psi
Warranty:	1 Year	Standard:	ASME Or PED Or Others
Dew Point:	-40°F	Flow Rate:	Depends On Customer's Needs
Compressor Type:	Reciprocating	Vessel Standard:	ASME VIII.1
Certifications:	ASME, CE, ISO

Air Dryer Type:	PSA And Refrigerated
Control Power:	110-240V 50/60Hz 0.5kw
Model:	IASK-2020
Control Panel:	HMI Touch Screen
Material:	Carbon Steel
Size:	Customizable
Compressor Capacity:	50 HP
Operating Pressure:	100 Psi
Warranty:	1 Year
Standard:	ASME Or PED Or Others
Dew Point:	-40°F
Flow Rate:	Depends On Customer's Needs
Compressor Type:	Reciprocating
Vessel Standard:	ASME VIII.1
Certifications:	ASME, CE, ISO

Custom Instrument Air Skid with HMI Touch Screen 50 HP Compressor

Customized Instrument And Service Air Skid For Air Delivery In Power Generation, Oil And Gas, And More

Product Specifications

Air Dryer Type	PSA and Refrigerated
Control Power	110-240V 50/60Hz 0.5kw
Model	IASK-2020
Control Panel	HMI Touch Screen
Material	Carbon Steel
Size	Customizable
Compressor Capacity	50 HP
Operating Pressure	100 psi
Warranty	1 year
Standard	ASME or PED or others
Dew Point	-40°F
Flow Rate	Depends on customer's needs
Compressor Type	Reciprocating
Vessel Standard	ASME VIII.1
Certifications	ASME, CE, ISO

Engineering Compressor Packages for Instrument Air (IA) & Service Air (SA)

Our engineering compressor packages for Instrument Air (IA) and Service Air (SA) deliver unmatched reliability and efficiency for industrial facilities, manufacturing plants, and large-scale EPC projects. Designed to meet stringent air quality standards (ISO 8573-1 Class 0-3) and operational demands, these systems integrate cutting-edge technology with robust engineering.

Key Features & Benefits

High-Efficiency Performance: Variable Speed Drive (VSD) technology reduces energy consumption by 30-40% vs. fixed-speed units. Advanced oil-free screw or centrifugal compressors ensure 100% contaminant-free air for sensitive applications.
Intelligent Control Systems: IoT-enabled controllers provide real-time monitoring, predictive maintenance alerts, and remote diagnostics. Automated load-sharing optimizes multiple compressor operations.
Robust Safety & Compliance: Certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards. Explosion-proof designs available for hazardous environments.
Modular & Scalable Design: Pre-engineered skid-mounted packages simplify installation and future expansion. Integrated components include air dryers, filters, receivers, and drainage systems.

Technical Parameters

Parameter	IA Package	SA Package
Flow Capacity	10-5,000 CFM	20-10,000 CFM
Pressure Range	7-15 bar (100-220 psi)	4-12 bar (60-175 psi)
Power Source	380-480V, 50/60Hz	380-480V, 50/60Hz
Noise Level	≤70 dB(A)	≤75 dB(A)
Air Quality	ISO Class 0-2 (Oil-free)	ISO Class 1-3

Why Choose IA/SA Compressor Packages?

Cost Savings: Reduced energy bills and maintenance costs through optimized design.
EPC Project Ready: Pre-validated engineering packages accelerate project timelines.
Global Standards: Compliance with ASME, PED, and API 618 for international deployments.
Sustainability: Lower carbon footprint via energy recovery systems (up to 90% heat reuse).

Frequently Asked Questions

What's the difference between IA and SA compressors?

IA systems produce ultra-clean air (<0.01 µm particles) for critical processes (e.g., lab instruments). SA units supply general plant air for tools/pneumatics, with moderate filtration.

Can packages be customized for harsh environments?

Yes. Options include Arctic-grade materials (-40°C operation), corrosion-resistant coatings for coastal sites, and desert cooling systems.

How is quality ensured during manufacturing?

Rigorous PPAP (Production Part Approval Process) and APQP (Advanced Product Quality Planning) protocols validate every component. MSA (Measurement System Analysis) guarantees testing accuracy.

What maintenance is required?

Predictive maintenance via onboard sensors minimizes interventions. Annual servicing includes filter replacements and torque checks.

Optimized for Reliability & ROI: Our engineering compressor packages for IA/SA merge precision engineering with operational intelligence, delivering uptime >99.5% and rapid ROI. Trusted by oil/gas, chemical, and energy sectors globally.

Keywords: Instrument Air Compressor, Service Air Package, Industrial Air Systems, Oil-Free Compressors, EPC Project Solutions, Energy-Efficient Compressors, ISO 8573-1 Compliance, VSD Compressor Systems.
