Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: QC
Document: GASPU nitrogen generators.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Plywood or other type
Delivery Time: 70work days
Payment Terms: T/T
Supply Ability: 2set/month
|
Material:
|
CS OR SS
|
Process:
|
Catalysis And Adsorption
|
Standard:
|
GB/ASME/PED
|
Oxygen In Hydrogen:
|
Below 1.5%
|
Work Pressure:
|
5-40barg
|
Power:
|
According To Design
|
Capacity:
|
10-3000Nm3/h
|
Ex Type:
|
ATEX/IEC/GB
|
|
Material:
|
CS OR SS
|
|
Process:
|
Catalysis And Adsorption
|
|
Standard:
|
GB/ASME/PED
|
|
Oxygen In Hydrogen:
|
Below 1.5%
|
|
Work Pressure:
|
5-40barg
|
|
Power:
|
According To Design
|
|
Capacity:
|
10-3000Nm3/h
|
|
Ex Type:
|
ATEX/IEC/GB
|
| Attribute | Value |
|---|---|
| Material | CS OR SS |
| Process | Catalysis and adsorption |
| Standard | GB/ASME/PED |
| Oxygen in hydrogen | Below 1.5% |
| Work Pressure | 5-40barg |
| Power | According to design |
| Capacity | 10-3000Nm³/h |
| Ex Type | ATEX/IEC/GB |

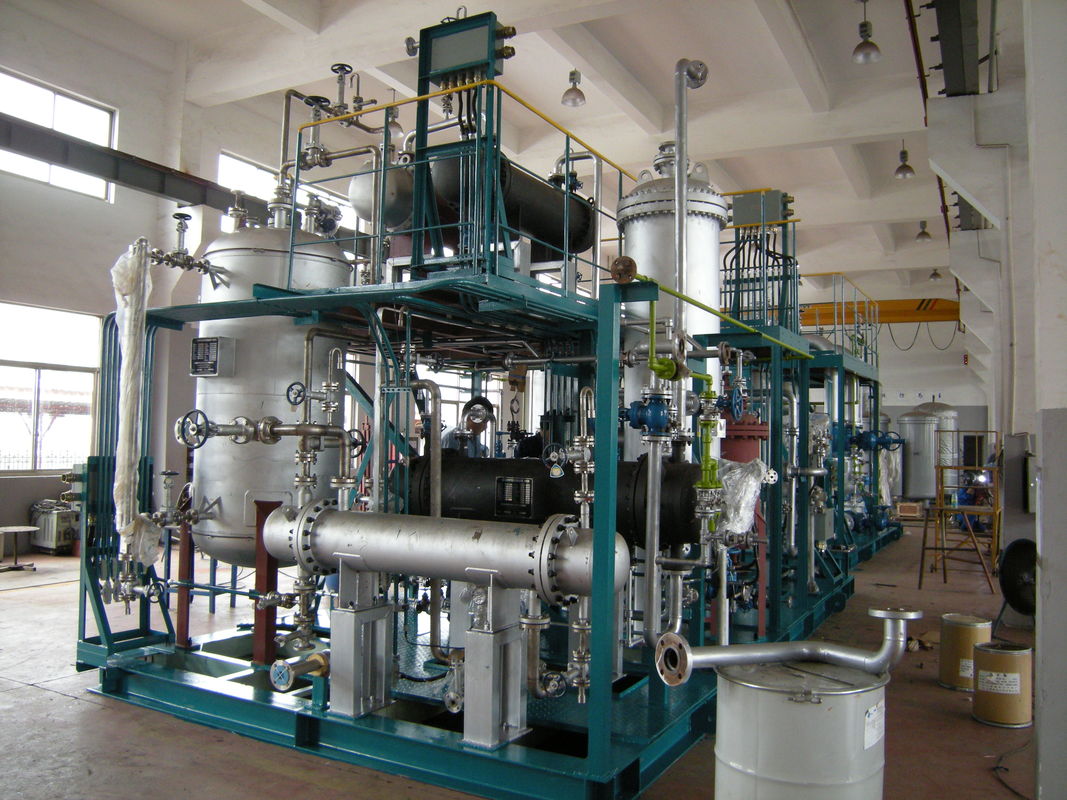

Our hydrogen purification equipment refines raw hydrogen gas into ultra-high-purity hydrogen by removing impurities such as oxygen, moisture, carbon dioxide, carbon monoxide, and hydrocarbons. Engineered for safety, efficiency, and automation, this equipment is essential for industries requiring precision-grade hydrogen, from electronics manufacturing to aerospace.
| Parameter | Range |
|---|---|
| Capacity | 10 - 3000 Nm³/h |
| Input Hydrogen Purity | ≥99.9% (typical) |
| Output Purity | Up to 99.9999% (6N) |
| Impurity Levels | Oxygen: <1 ppm; Moisture: <5 ppm; CO/CO₂: <1 ppm |
| Operating Pressure | 0.5 - 3.0 MPa (customizable) |
| Operating Temperature | 5 - 45°C |
| Power Supply | 380V/50Hz (or custom) |
| Skid Dimensions | Customized per capacity |
Key applications include electronics (semiconductor doping, LCD manufacturing), petrochemicals (hydrocracking, hydrogenation), metallurgy (annealing protective gas), aerospace (rocket fuel cells), and green energy (hydrogen storage for renewable grids).
Under normal operating conditions, adsorbents last 2-3 years. The automated regeneration system extends lifespan by removing adsorbed impurities, reducing maintenance frequency.
Yes. The PLC adjusts process parameters to maintain purity even as input flow fluctuates by ±20% of rated capacity.
Our equipment complies with ISO 13982 (hydrogen purity), ASME BPVC (pressure vessels), and CE marking for EU markets. Custom certifications are available upon request.
Skid-mounted units require 1-2 weeks for on-site setup, including piping, electrical connections, and testing. We provide full technical support during commissioning.
With over a decade of experience in gas purification, we combine innovation with proven reliability. Our hydrogen purification skids are backed by a global service network, ensuring prompt maintenance and spare parts delivery. We tailor solutions to your purity, capacity, and safety requirements.
