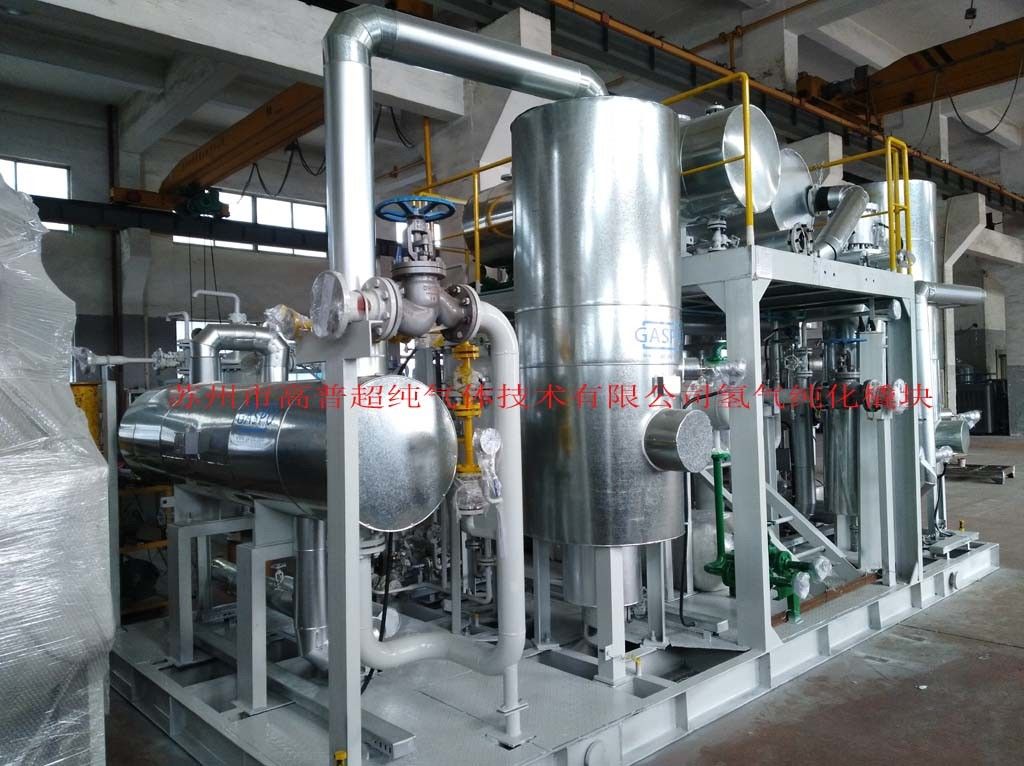

Hydrogen Purification Skid 10-3000Nm3/h ASME GB PED Standard

Our skid-mounted hydrogen purification system is designed for large capacity applications, featuring two towers for water removal in hydrogen with full PLC control. The system achieves automatic regeneration of water removal towers at 150°C-180°C, delivering hydrogen with dew point below -70°C (1ATM).

The hydrogen purification system utilizes catalysis and adsorption technology. Hydrogen passes through the system where oxygen reacts with hydrogen under palladium catalyst to form water. Impurities including water, carbon dioxide, and carbon monoxide are adsorbed, producing high-purity hydrogen.

• High purity output: Meets stringent industrial requirements for hydrogen purity
• Efficient operation: Continuous automatic oxygen removal with timed switching between drying towers
• Automated control: PLC-controlled system minimizes manual intervention
• Safety compliant: Designed with multiple safety measures for hydrogen handling
• Precision performance: Capable of reducing oxygen below 1ppm and water below 5ppm

Our hydrogen purification skids are widely used in:

• Petrochemical processing
• Electronics manufacturing
• Metallurgical applications
• Aerospace technology

These industries utilize high-purity hydrogen as reaction feedstock, protective atmosphere, and reducing gas to ensure product quality and enhance production efficiency.

Available in capacities from 10-3000Nm³/h, our hydrogen purification skids can be customized to meet specific process requirements.
