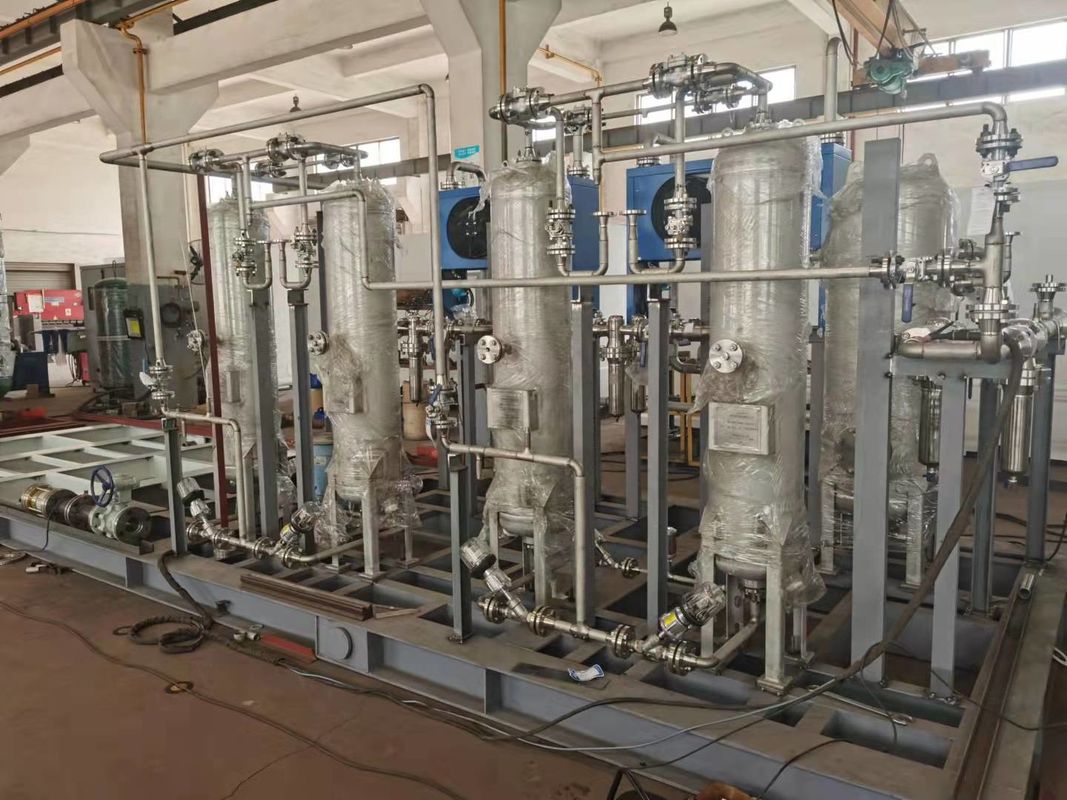

Instrument Air Package Skid with ASME B31.3 Pipeline

A large-scale instrument air package designed for industrial applications, featuring separate IA tank placement to accommodate transportation requirements.

GASPU's years of technological expertise ensure mature, reliable, and stable instrument air packages for diverse industrial needs. Our "GASPU" standard technology provides a robust foundation for instrument air package design.

The instrument air package includes:

• Air compressor
• Air tank
• Filtration system
• Dryer unit
• Control valves
• Instrumentation
• Redundant control system

The IA tank is included on the skid. Simply connect to power supply to obtain qualified instrument air.

The skid-mounted instrument air system integrates all components including compressors, dryers, controllers, valves, piping, and auxiliary equipment on a single steel platform. Featuring reserved process connections and control interfaces, this fully assembled solution offers convenient mobility and flexible deployment.

• Reduced on-site construction: Factory-completed assembly minimizes field installation requirements
• Enhanced efficiency: Factory testing and inspection streamline project timelines
• Quality assurance: Controlled factory environment ensures superior installation quality
• Mobility: Integrated skid design enables easy relocation and flexible deployment

The system purifies and dries compressed air to achieve:

• Dew point below -40℃
• Oil content below 0.01ppm
• Dust particle size less than 0.01um

Ambient air undergoes compression, cooling, and phase separation before storage. Multi-stage filtration and deep dehydration processes then produce high-quality instrument air.

Widely implemented in:

• Natural gas liquefaction units
• Well gas recovery systems
• Decarbonization modular units
• Sulfur recovery modules

Ideal for remote gas field operations including shale gas and coalbed methane applications, offering high integration, rapid installation, and relocation flexibility.

This non-standard equipment requires detailed customer specifications and datasheets for proper design configuration.
