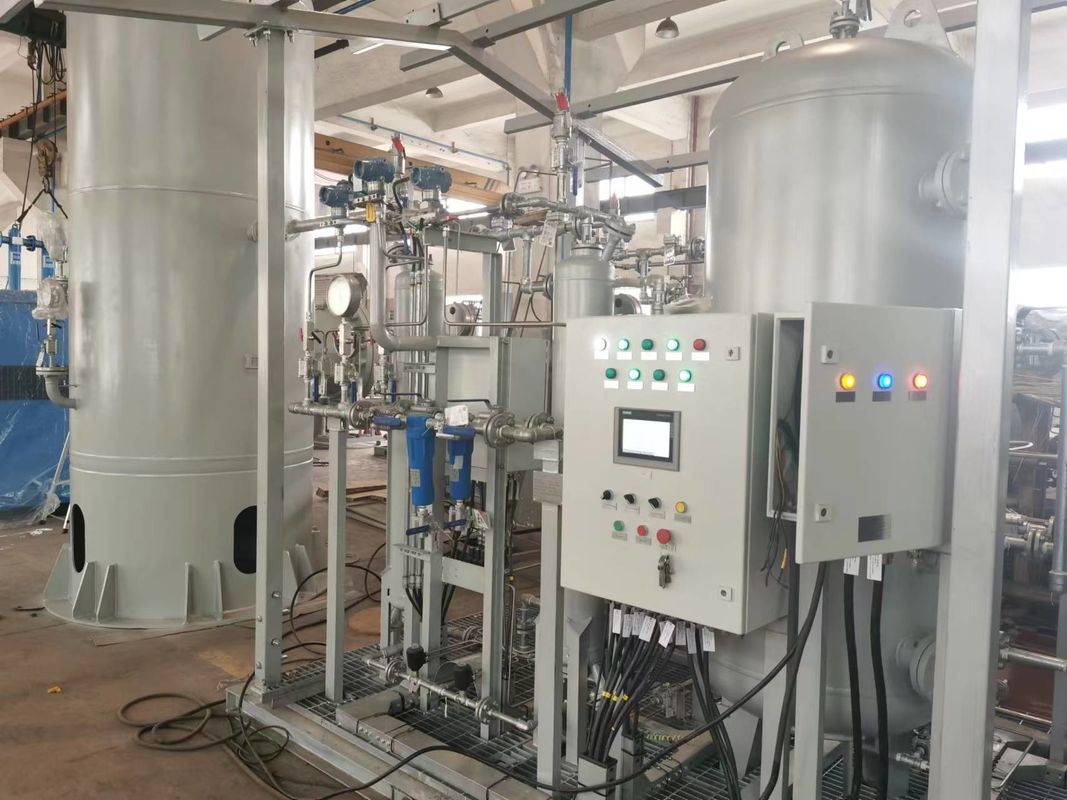

Instrument Air Skid System with -40℉ Dew Point ASME B31.3 Compliant

Instrument Air Skid System: High-Purity Modular Air Supply for Critical Industries

In industrial operations where precision and reliability are non-negotiable, Instrument Air Skids stand as the backbone of pneumatic control systems. These self-contained, skid-mounted units deliver ultra-clean, dry compressed air—essential for powering sensitive instruments, valves, and control systems across sectors like oil & gas, petrochemicals, LNG, and pharmaceuticals. Engineered for performance, compliance, and ease of integration, they combine cutting-edge technology with modular design to solve the challenges of on-site installation complexity and air quality consistency.

Instrument Air Skids are defined by their robust construction, strict quality control, and adaptability. Here's what sets them apart:

• Modular "Plug-and-Play" Design: All critical components—air compressors, refrigerated/desiccant dryers, filters, receivers, valves, and controls—are pre-assembled and factory-tested on a single structural steel skid. This minimizes on-site work, reducing installation time by up to 90%.
• Certified Safety & Compliance: Pressure vessels (air receivers) comply with the EU's Pressure Equipment Directive (PED 2014/68/EU), while piping systems meet EN 10204-3.1 (material traceability) or ASME B31.3 (process piping standards), ensuring global safety compliance.
• Unmatched Air Purity: Achieves ISO 8573-1 Class 1 standards with pressure dew point below -40°C (-40°F) to prevent condensation in cold environments, oil content <0.01 ppm and particulate filtration down to 0.01 microns, safeguarding sensitive equipment from contamination.
• Advanced Control & Redundancy: Equipped with PLC-based control panels (Siemens/Allen-Bradley) for seamless automation. Redundant CPUs and I/O modules are available for critical applications, ensuring 24/7 uptime.
• Durable Materials: Constructed with galvanized carbon steel (for corrosion resistance) or stainless steel (for harsh environments), ensuring longevity in demanding settings.

Compared to traditional stick-built systems, Instrument Air Skids offer transformative benefits:

• Faster Installation & Commissioning: Up to 90% of assembly, wiring, and testing is completed in a controlled factory environment, slashing on-site labor costs and project timelines.
• Guaranteed Quality: Factory testing (FAT) under optimal conditions ensures consistent performance, reducing the risk of on-site errors.
• Space & Cost Savings: Compact, integrated design optimizes footprint, while single-source vendor responsibility simplifies procurement and after-sales support.
• Mobility & Flexibility: Easily relocatable for temporary sites or operational changes, making them ideal for remote projects or evolving industrial needs.

• What certifications ensure safety? Vessels are PED 2014/68/EU-certified, and piping meets EN 10204-3.1 or ASME B31.3 standards, ensuring compliance with global safety norms.
• Why is -40°C dew point critical? It prevents condensation in cold environments, avoiding freezing, corrosion, or instrument malfunctions.
• How does a skid system save time? Factory pre-integration reduces on-site work by 90%, accelerating commissioning and project delivery.
• Is customization available? Yes—systems are tailored to flow rate, pressure, air quality, redundancy, and material requirements via a detailed customer datasheet.
