Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: IA
Document: GASPU nitrogen generators.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Plywood or other type
Delivery Time: 25work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 4set/month
|
Product Name:
|
Instrument Air N2 Generator Skid
|
Capacity:
|
By Customer
|
Dew Point:
|
Below-40℃
|
Material:
|
CS With Galv
|
Vessel Standard:
|
ASME VIII.1
|
Pipeline Standard:
|
ASME B31.3
|
Power:
|
According To Design
|
Size:
|
According To Design
|
Weight:
|
According To Design
|
Control:
|
Option In Redundant
|
|
Product Name:
|
Instrument Air N2 Generator Skid
|
|
Capacity:
|
By Customer
|
|
Dew Point:
|
Below-40℃
|
|
Material:
|
CS With Galv
|
|
Vessel Standard:
|
ASME VIII.1
|
|
Pipeline Standard:
|
ASME B31.3
|
|
Power:
|
According To Design
|
|
Size:
|
According To Design
|
|
Weight:
|
According To Design
|
|
Control:
|
Option In Redundant
|
| Product Name | Instrument air N2 generator skid |
| Capacity | by customer |
| Dew point | Below-40℃ |
| Material | CS with galv |
| Vessel standard | ASME VIII.1 |
| Pipeline standard | ASME B31.3 |
| Power | According to design |
| Size | According to design |
| Weight | According to design |
| Control | Option in Redundant |

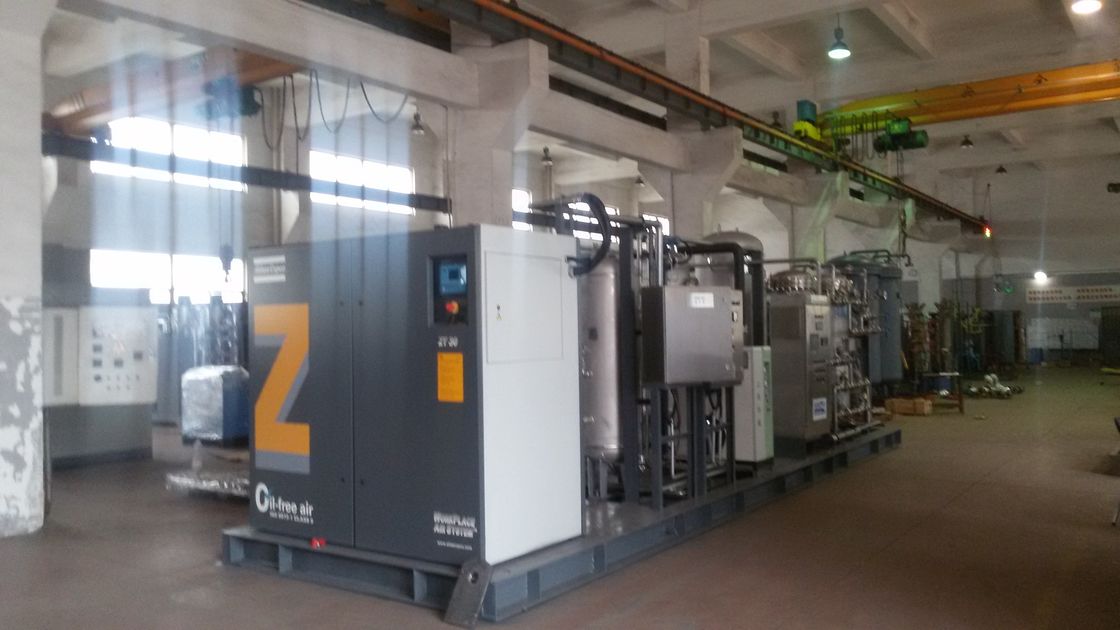

Designed for outdoor applications, our Instrument Air & Nitrogen (N₂) Generator Skid combines robust performance with user-centric engineering, featuring an integrated sunshade to eliminate the need for costly shelters. Ideal for industries requiring continuous, high-purity instrument air and nitrogen—such as oil & gas, petrochemicals, pharmaceuticals, and power generation—this skid-mounted system delivers 24/7 reliability in harsh environments.
All components meet IP65 protection standards, ensuring durability against dust, rain, and temperature fluctuations, while its compact, pre-assembled design minimizes on-site civil work and installation time.
| Product Name | Outdoor Instrument Air & N₂ Generator Skid with Sunshade |
| Capacity | Customizable (5-500 Nm³/h for instrument air; 1-200 Nm³/h for N₂) |
| Air Quality | ISO 8573-1:2010 Class 1.2.1 (oil-free, ≤0.1 μm particles, -40°C PDP dew point) |
| N₂ Purity | 95-99.999% (adjustable via PSA technology) |
| Operating Pressure | 6-10 bar (customizable up to 30 bar) |
| Material | Carbon Steel (galvanized) or Stainless Steel (304/316) |
| Vessel Standard | ASME VIII.1 (U Stamp) |
| Piping Standard | ASME B31.3 |
| Power Supply | 380V/415V, 50/60Hz (customizable for local grids) |
| Control System | Redundant PLC (Siemens S7 or Allen-Bradley ControlLogix) with HMI |
| Protection Rating | IP65 (instruments, enclosures) |
| Dimensions & Weight | Customized per capacity (contact for CAD drawings) |
Yes. The system is designed to operate in -20°C to +50°C (-4°F to 122°F) with optional cold-weather packages for sub-zero environments.
Routine maintenance (filter replacements, dryer desiccant checks) is recommended every 6-12 months, depending on usage. The PLC includes maintenance alerts to prevent unexpected downtime.
Absolutely. Using Pressure Swing Adsorption (PSA) technology, N₂ purity can be tuned from 95% to 99.999% to match your process requirements.
No. The sunshade is structurally integrated into the skid frame, engineered to withstand wind loads up to 150 km/h (93 mph) as standard.
Only a clean inlet air source, electrical power, and a drain connection. All other components (compressor, dryer, nitrogen generator) are pre-installed.
