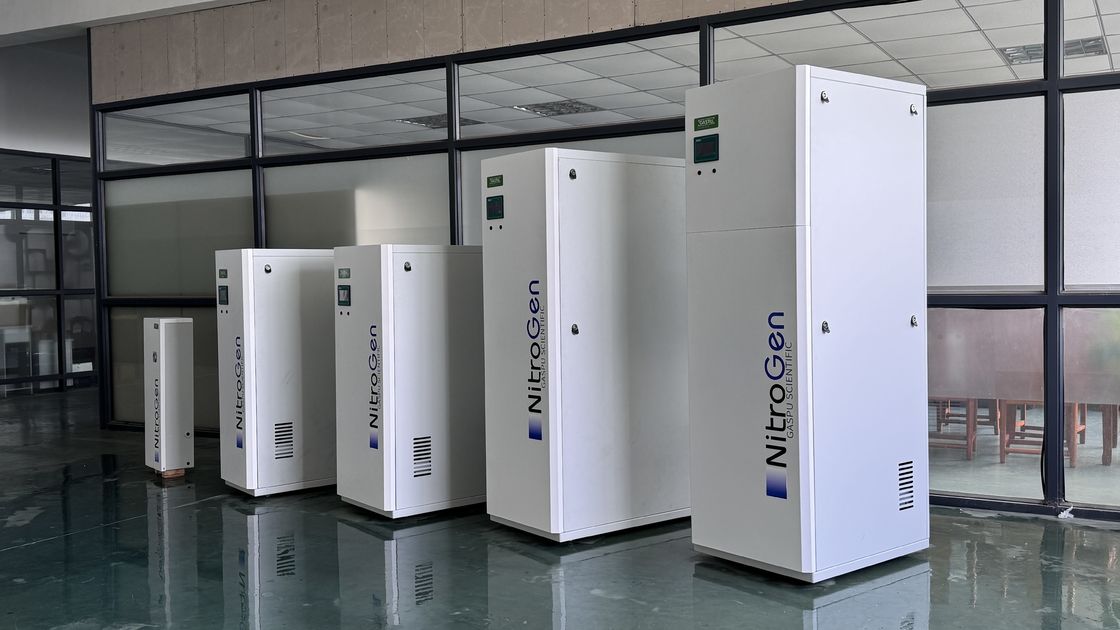

PSA Nitrogen Generator 3000L/min 99.9995% Purity 220V 50Hz

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: GPA

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Carton

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 30pcs/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    PSA high purity nitrogen generator, 220V high purity nitrogen generator, PSA cryogenic nitrogen generator


Name:	Nitrogen Generator(PSA)	Capacity:	3000l/min
Purity:	99.9995%	Size:	8507501780
Work Pressure:	4-6barg	Power:	220V 50Hz 0.2kw
Weight:	188kg	Package:	Carton Package

Name:	Nitrogen Generator(PSA)
Capacity:	3000l/min
Purity:	99.9995%
Size:	8507501780
Work Pressure:	4-6barg
Power:	220V 50Hz 0.2kw
Weight:	188kg
Package:	Carton Package

PSA Nitrogen Generator 3000L/min 99.9995% Purity 220V 50Hz

PSA High Purity Cryogenic Nitrogen Generator 220V 50Hz 0.2kw

Product Specifications

Attribute	Value
Name	nitrogen generator(PSA)
Capacity	3000l/min
Purity	99.9995%
Size	8507501780
Work pressure	4-6barg
Power	220V 50Hz 0.2kw
Weight	188kg
Package	Carton package

UG-SMZ Nitrogen Generator: Optimize Shimadzu LC-MS Performance with Precision Gas Supply

The UG-SMZ Nitrogen Generator is a cutting-edge solution engineered to elevate the performance of Shimadzu liquid chromatography-mass spectrometry (LC-MS) systems. Designed to meet the rigorous gas purity and flow demands of Shimadzu's latest high-performance instruments, this generator combines advanced membrane technology, intelligent energy efficiency, and lab-friendly design to deliver a seamless, cost-effective gas supply solution for modern analytical laboratories.

Key Product Features & Technology

The UG-SMZ stands out for its precision-engineered features, tailored to enhance LC-MS reliability and user experience:

Dedicated Compatibility with Shimadzu LC-MS: Factory-preset pressure and flow rate parameters ensure out-of-the-box compatibility with Shimadzu LC-MS systems, eliminating guesswork and guaranteeing optimal instrument performance.
Advanced Membrane Separation for LC-MS Grade Purity: Uses an imported high-efficiency nitrogen separation membrane, producing nitrogen with purity levels of ≥99.5%--the gold standard for LC-MS applications.
Integrated Purification & Membrane Protection: Built-in cold dry filtration system removes moisture, oil aerosols, and particulates from compressed air before it reaches the membrane.
Energy-Efficient, High-Durability Compressor: Powered by an imported high-performance air compressor with ECO energy-saving mode that adjusts operation based on gas demand.
Lab-Friendly Design: Compact footprint fits discreetly under laboratory benches, with low-noise (≤55dB) and low-heat emission design.

Technical Specifications

Parameter	Specification
Nitrogen Purity	LC-MS Grade (≥99.5%)
Output Flow/Pressure	Factory-preset for Shimadzu LC-MS systems
Technology	Advanced membrane separation
Compressor	Imported high-performance brand with ECO mode
Filtration	Built-in cold dry system (removes moisture, oil, particulates)
Exhaust Ports	1× Nitrogen, 1× Air
Design Features	Compact under-bench design, low noise (≤55dB), low heat emission

Detailed Specifications

No.	Item	Specification
1	Model	NG-***
2	Nitrogen	100L/min-300L/min
3	Purity	99%-99.9995%
4	Power	220V/50Hz 0.2KW
5	Outlet size	1"BSPP
6	Noise	75dB@1m
7	Size	Depending on the model
8	Weight	Depending on the model
9	Other	No air compressor in generator

Frequently Asked Questions

Q1: Is the UG-SMZ compatible with all Shimadzu LC-MS models?

A: The UG-SMZ is optimized for Shimadzu's latest high-performance LC-MS instruments (e.g., LCMS-8060NX, LCMS-9050). Always verify compatibility with your specific model via your Shimadzu representative or supplier.

Q2: What maintenance does the UG-SMZ require?

A: Routine maintenance involves replacing pre-filtration elements (part of the cold dry system) as specified in the user manual. Timely filter changes protect the membrane and compressor, ensuring long-term performance.

Q3: How does ECO mode impact performance?

A: ECO mode intelligently adjusts compressor operation based on nitrogen demand, reducing energy use and wear during low-demand periods without compromising purity, pressure, or flow when needed.

Q4: Is the UG-SMZ suitable for small labs?

A: Yes. Its compact under-bench design and low noise/heat output make it ideal for labs with limited space, ensuring minimal disruption to workflows.

Keywords: UG-SMZ Nitrogen Generator, Shimadzu LC-MS, LC-MS gas supply, membrane nitrogen generator, lab nitrogen generator, high-purity nitrogen for LC-MS, energy-efficient nitrogen generator, under-bench nitrogen system.
