Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: NG
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Plywood or other type
Delivery Time: 40work days
Payment Terms: T/T
Supply Ability: 6set/month
Usage: |
Nitrogen |
Condition: |
New |
Warranty: |
One Year |
Production Rate: |
95--99.9995% |
Type: |
Membrane Separation Nitrogen Generator |
Nitrogen Purity: |
95-99.9% |
Material: |
Carbon Steel |
Usage: |
Nitrogen |
Condition: |
New |
Warranty: |
One Year |
Production Rate: |
95--99.9995% |
Type: |
Membrane Separation Nitrogen Generator |
Nitrogen Purity: |
95-99.9% |
Material: |
Carbon Steel |

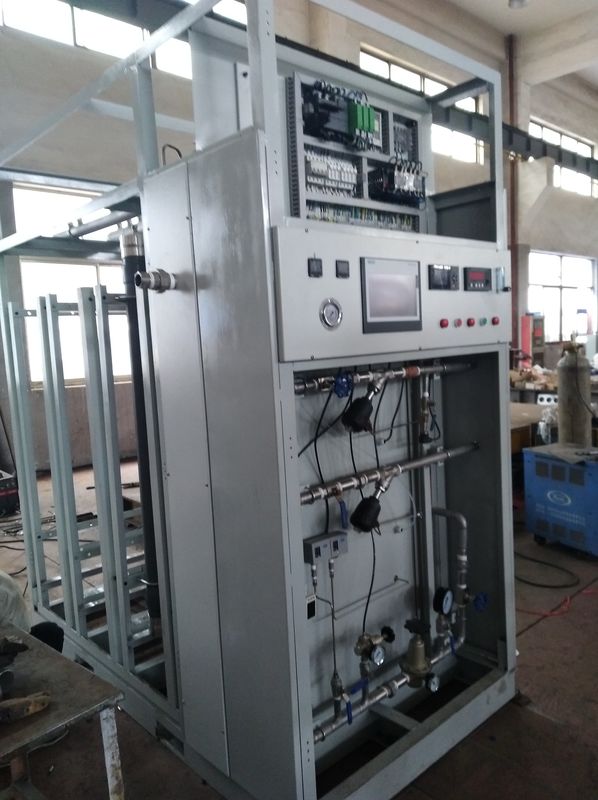

Membrane nitrogen generator,60Nm3/h, Purity 99.5%, include air compressor and air dryer
Membrane separation nitrogen generator is a device that uses membrane separation technology to separate nitrogen and oxygen in the air, thereby obtaining high-purity nitrogen. The following is a detailed introduction to the membrane separation nitrogen generator:
Working principle
The working principle of a membrane separation nitrogen generator mainly utilizes the different abilities of nitrogen and oxygen in the air to pass through the membrane and separates nitrogen and oxygen through membrane separation technology. Under the pressure difference, nitrogen passes through the membrane faster than oxygen, thus achieving the separation of nitrogen and oxygen. The purity of the separated nitrogen can reach a high level, meeting the needs of various industrial applications.
Part List
| Name | Model | Qty | MFG |
| Air compressor | By others | ||
| Air tank | C-2/13 | 1 | SHENJIANG |
| Filter | AO030JBFI | 1 | PARKER |
| Filter | AA030JBFI | 1 | PARKER |
| Air dryer | KLCF-100 | 1 | GASPU |
| Filter | ACS030JBFI | 1 | PARKER |
| PG | 1.6MPa | 2 | WIKA |
| PLC | 1set | SIEMENS | |
| TIC | E | 1 | OMRON |
| temperature sensor | Pt100 | 1 | WIKA |
| Temp Transmitter | 100 4-20mA | 2 | EMERSON |
| Membrane | PA4050 | 12 | PRSIM |
| Pressure sensor | 3051TG | 1 | EMERSON |
| Pres. Transmitter | 4-20mA | 1 | EMERSON |
| HMI | SMART700 | 1 | SIEMENS |
| Memory card | 1 | SIEMENS | |
| FT | 4-20mA/SF10 | CHENGDE | |
| Purity control valve | DN20PN16 | 1 | CHINA |
| Sample Flowmeter | 0--2SCFH | 1 | CHINA |
| PRV | AR2000-02 | 1 | SMC |
| Check valve | DN20PN16 | 1 | HUAYING |
| O2 analyzer | P860-4N | 1 | CHANGAI |
| Valves, fittings | 1set | CHINA | |
| Ele parts | 1set | SCHNEIDER | |
