Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: UG
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 25work days
Payment Terms: T/T
Supply Ability: 30pcs/month
Name: |
Nitrogen Generator(under Table) |
Capacity: |
35l/min |
Purity: |
99.5% |
Size: |
750*500*785 |
Work Pressure: |
4-8barg |
Power: |
230V 50Hz 2.2kw |
Weight: |
100kg |
Package: |
Carton Packaging |
Name: |
Nitrogen Generator(under Table) |
Capacity: |
35l/min |
Purity: |
99.5% |
Size: |
750*500*785 |
Work Pressure: |
4-8barg |
Power: |
230V 50Hz 2.2kw |
Weight: |
100kg |
Package: |
Carton Packaging |

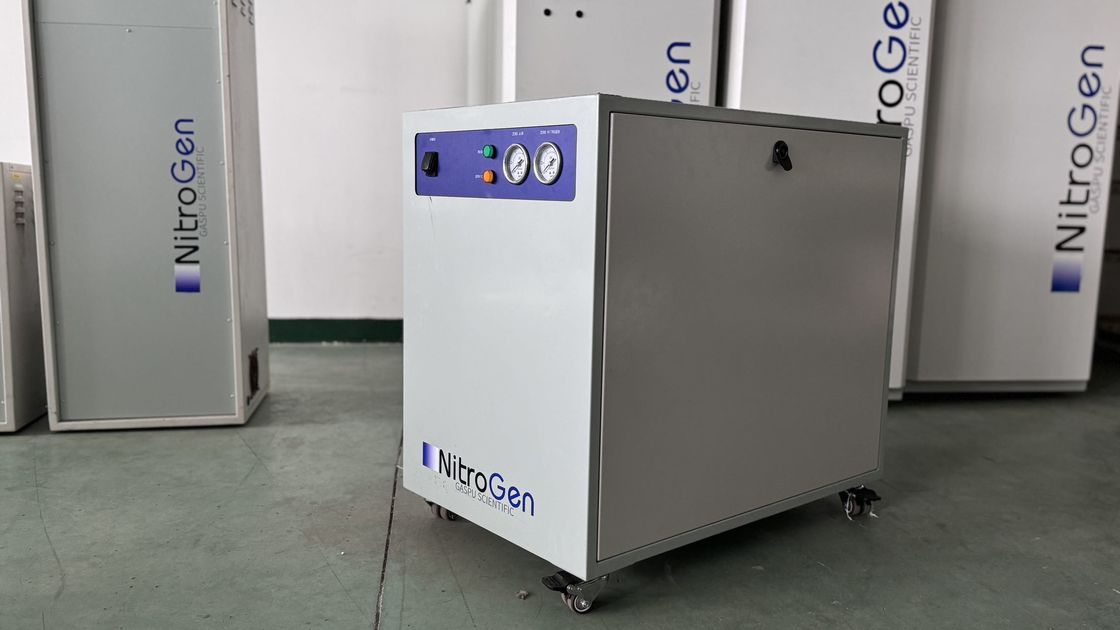

Introduction:
UG-NG combines advanced nitrogen production technology with lean processes. While possessing all the functions of the original all-in-one machine, the product has undergone precise design and can be placed under the experimental table in a smaller size, effectively reducing noise and heat emissions.
The UG-NG nitrogen generator adopts membrane separation technology, which can meet the gas requirements of LC-MS, small mass spectrometers, and multiple ELSDs.
Characteristic
1.Factory preset pressure and flow rate to meet the requirements of AB SCIEX system.
2. Built in cold dry filtration system to effectively remove moisture and pollutants, ensuring stable gas quality
3. Adopting imported high-efficiency nitrogen separation membrane, nitrogen production is fast and reliable
3. Low noise, low heat emissions, and minimal impact on laboratory environment
4. Adopting imported brand high-performance air compressors and ECO energy-saving mode to reduce energy consumption and maximize the service life of air compressors
5. Optional IoT module installation
Datasheet
| No. | Item | Specification |
| 1 | Model | UG-NG |
| 2 | Nitrogen | 35L/min@110psi |
| 3 | Dry air | N/A |
| 4 | Dry air | N/A |
| 5 | Power | 220V/50Hz 2.2KW |
| 6 | Outlet size | 1*1/4"BSPP |
| 7 | Nosie | 60dB@1m |
| 8 | Size | 750*500*785mm |
| 9 | Weight | 100kg |
| 10 | Other | Optional IoT module installation |
