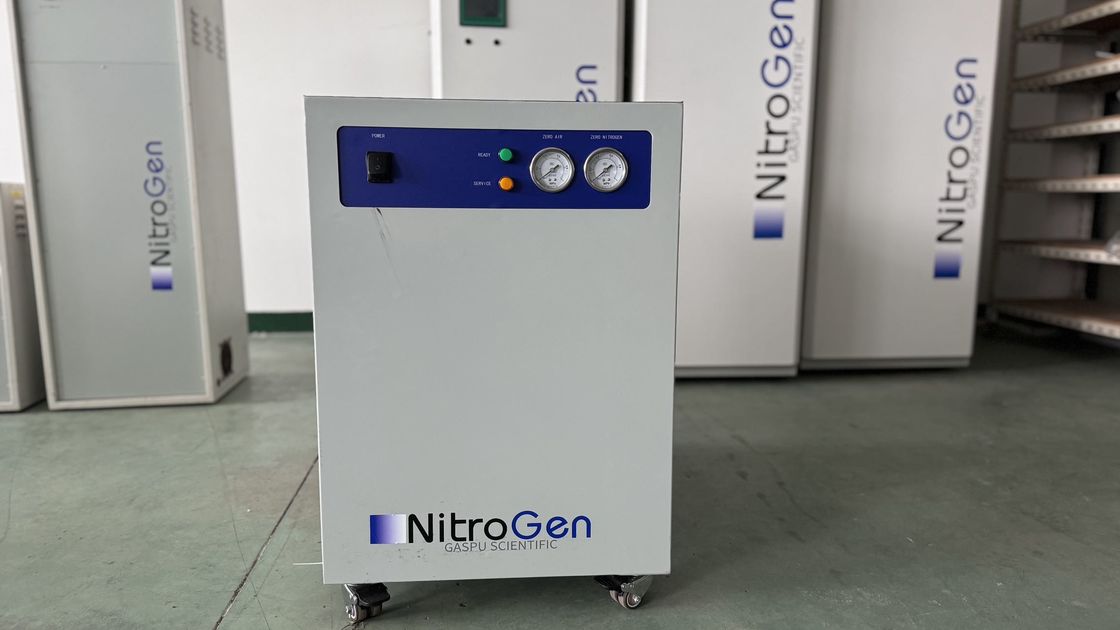

Integrated Nitrogen Gas Zero Air Generator ZAZN 1020 2000mL/min

introduction

This model is a nitrogen zero gas generator developed by GASPU Science specifically for chromatographic gases. It combines PSA technology and catalytic technology and can provide high-quality zero level compressed air and high-purity zero level nitrogen at the same time. The nitrogen purity is 99.9995%, which can be used for GC detectors and carrier gases.

Equipped with an oil-free air compressor, it can simultaneously meet the zero air and zero nitrogen requirements for up to 6 chromatographs.

characteristic

1. The ZAZN 1020 generator is developed to provide high-purity zero nitrogen and zero air for GC carriers and detector gases.

2. The ZAZN 1020 is equipped with a large capacity pressure storage tank, which has a fast restart function, allowing the unit to operate shortly after or in the event of a power outage. Very suitable for laboratories where stable power supply cannot be guaranteed.

3. The catalyst chamber removes hydrocarbons (methane) to<0.1 ppm

4. Zero air and zero nitrogen improve baseline stability

5. Provide two independent outputs of zero level nitrogen and zero level air

6. The fast restart function allows for immediate gas supply after a power outage

7. The internal air compressor does not require an external air source

8. The compact size means that the nitrogen generator can work under a standard laboratory workbench, with lower noise levels than most standard laboratory instruments.
