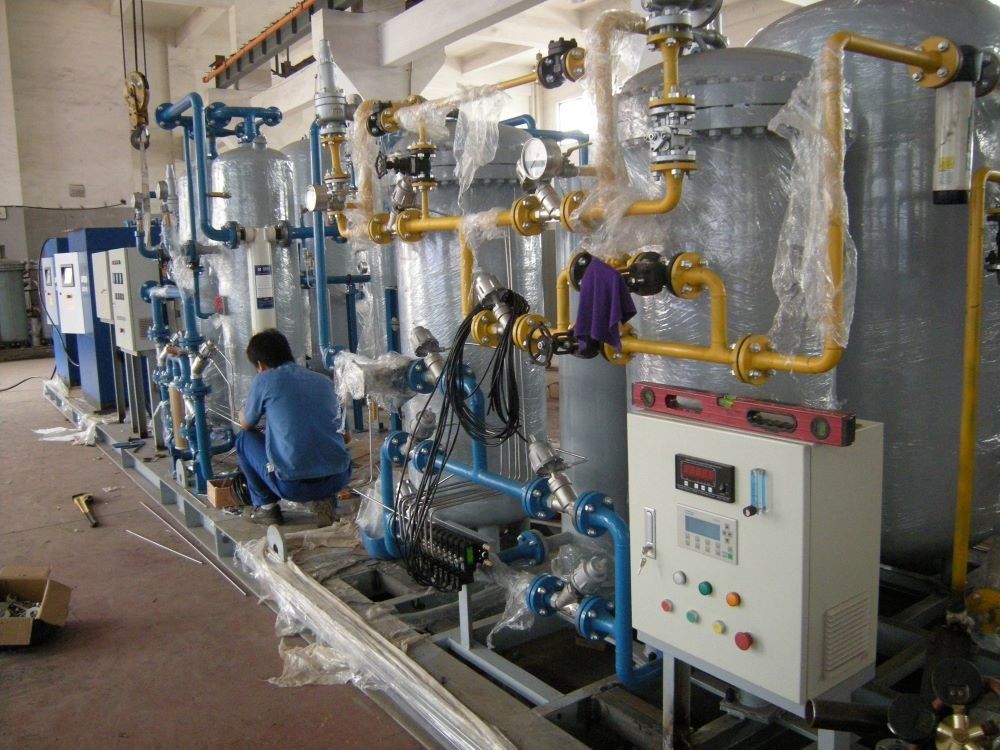

300SCFM Instrument Air Skid with 50SCFM N2 Generator System

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: ANG

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood or other type

Delivery Time: 100work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                            Instrument Air Skid N2 Generator, 300SCFM Instrument Air Skid, n2 generator system Skid


Product Name:	Instrument Air N2 Generator Package	IA Capacity:	300SCFM
IA Dew Point:	Below-40℉	N2 Purity:	Min99%
N2 Capacity:	50SCFM	Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1	Pipeline Standard:	ASME B31.3
Power:	According To Design	Size:	According To Design
Weight:	According To Design	IA TANK:	Option
N2 Tank:	Option

Product Name:	Instrument Air N2 Generator Package
IA Capacity:	300SCFM
IA Dew Point:	Below-40℉
N2 Purity:	Min99%
N2 Capacity:	50SCFM
Material:	CS With Galv Or SS
Vessel Standard:	ASME SEC VIII DIV.1
Pipeline Standard:	ASME B31.3
Power:	According To Design
Size:	According To Design
Weight:	According To Design
IA TANK:	Option
N2 Tank:	Option

300SCFM Instrument Air Skid with 50SCFM N2 Generator System

300SCFM Instrument Air Skid IA N2 Generator System Package

Product Overview

Our integrated Instrument Air (IA) and Nitrogen (N₂) Generator Skid Package delivers a complete, factory-assembled solution for reliable, high-purity compressed air and nitrogen generation. Designed for plug-and-play operation, this skid-mounted system integrates critical components onto a single, robust platform.

Key Features

High-Capacity Output: 300 SCFM Instrument Air and 50 SCFM Nitrogen at minimum 99% purity
Exceptional Air Quality: Instrument air dew point below -40°F (-40°C) with multi-stage filtration
Skid-Mounted Integration: Pre-engineered and pre-assembled with air compressor(s), filters, dryer, nitrogen generator(s), and control panel
Flexible Configuration: Optional external tanks available for Plant Air and Nitrogen storage
Robust Construction: Carbon Steel (galvanized) or Stainless Steel options with ASME-compliant vessels and piping

Technical Specifications

Parameter	Specification
Product Name	Instrument Air & Nitrogen Generator Skid Package
IA Capacity	300 SCFM
IA Dew Point	Below -40°F (-40°C)
N₂ Capacity	50 SCFM
N₂ Purity	Min. 99%
Material	CS (Galvanized) or SS Options
Vessel Standard	ASME Sec. VIII, Div. 1
Pipeline Standard	ASME B31.3
IA Tank	Included (On Skid)
Plant Air Tank	Optional (Off Skid)
N₂ Tank	Optional (Off Skid)

Note: Final dimensions, weight, and exact power requirements determined during detailed engineering based on selected components and site conditions.

System Advantages

Reduced site work and faster commissioning with factory-tested components
Enhanced quality and reliability through controlled factory assembly
Simplified logistics and installation with single-skid design
Relocation flexibility for changing operational needs
Space optimization with compact, integrated design

Typical Applications

Oil & Gas (LNG liquefaction, gas processing, offshore platforms)
Petrochemical & Chemical Plants
Power Generation
Remote Mining Operations
Modular Process Units

Frequently Asked Questions

Q: How long does installation take on site?

A: Significantly faster than traditional systems! Primarily involves positioning the skid, connecting the main power supply, and optionally connecting external tanks.

Q: Are specific component brands required?

A: We work with reputable manufacturers. Please inform us of any specific supplier preferences or requirements.

Q: Is this a standard "off-the-shelf" unit?

A: This is a non-standard, engineered package. Final design depends on your detailed requirements and site conditions.

Q: Can the output capacities or purity levels be customized?

A: Yes. We can engineer skids for different capacities and purity requirements.
