Home > products > PSA Nitrogen Generator > Auto Switch PSA Nitrogen Generator 10-500 SCFM 95-99.99% Purity

Auto Switch PSA Nitrogen Generator 10-500 SCFM 95-99.99% Purity

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: NG

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood or other type

Delivery Time: 25work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4set/month

Chat now
Highlight:

Uninterruptible psa based nitrogen plant

,

psa based nitrogen plant N2 Generator

,

Uninterruptible nitrogen psa unit

Name:
Nitrogen Generator
Payment:
Negotiation
Usage Life:
20years Or Option
Air Compressor:
Option
Capacity:
10-200SCFM
Nitrogen Dew Point:
≤-40℃(Atmosphere Pressure)
Power Consumption:
Wide Range Of Applicatio
Purity:
95%-99.999%
Shell:
NA
Nosie:
Below 85db(A)
Place Of Use:
On Site
Name:
Nitrogen Generator
Payment:
Negotiation
Usage Life:
20years Or Option
Air Compressor:
Option
Capacity:
10-200SCFM
Nitrogen Dew Point:
≤-40℃(Atmosphere Pressure)
Power Consumption:
Wide Range Of Applicatio
Purity:
95%-99.999%
Shell:
NA
Nosie:
Below 85db(A)
Place Of Use:
On Site
Auto Switch PSA Nitrogen Generator 10-500 SCFM 95-99.99% Purity
Auto Switch N2 Generator for Uninterruptible Nitrogen Supply
Product Overview

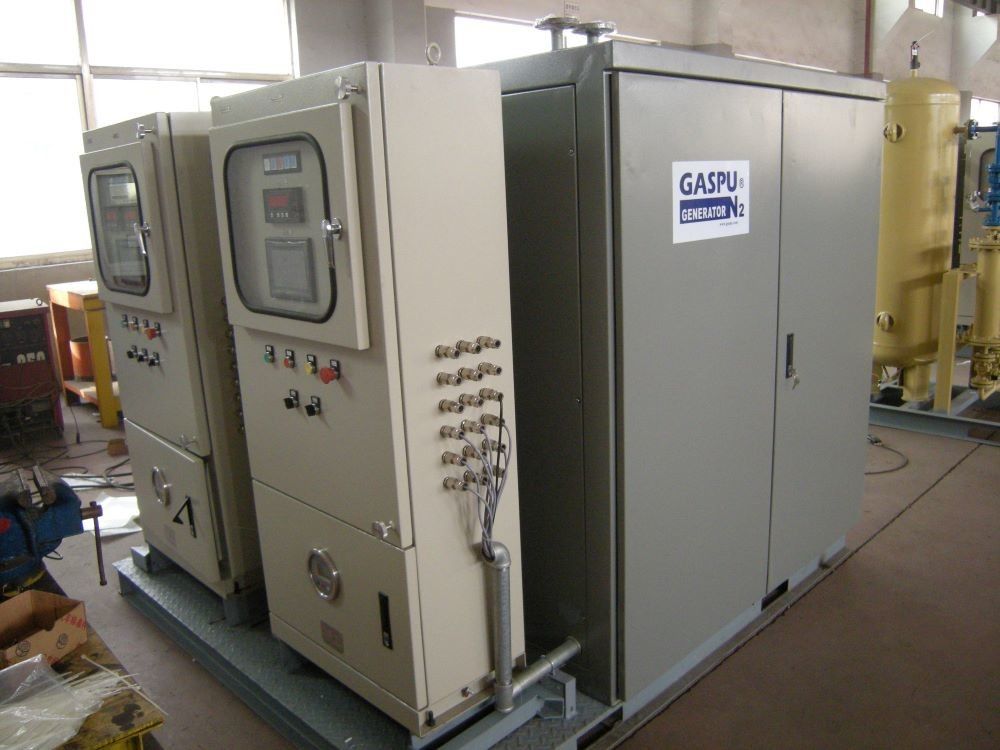

The Auto Switch N2 Generator by Suzhou GASPU is a cutting-edge, skid-mounted nitrogen generation system designed to deliver uninterrupted, high-purity nitrogen supply for critical industrial applications. Featuring dual PSA (Pressure Swing Adsorption) nitrogen generators integrated into a single skid and controlled by a centralized PLC (Programmable Logic Controller), this system ensures seamless switching between units during maintenance, alarms, or peak demand—eliminating downtime and safeguarding production continuity.

Key Features & Benefits
  • Uninterruptible Supply: Dual-generator design with PLC automation for instant failover
  • High Purity: Adjustable purity from 95% to 99.99% to meet specific process requirements
  • Capacity Flexibility: Flow rates from 10 to 500 SCFM (Standard Cubic Feet per Minute)
  • Energy Efficient: Minimizes consumption by optimizing adsorption/desorption cycles
  • Durable Design: Skid-mounted structure with 25-year service life
  • User Flexibility: Optional air compressor and remote monitoring capabilities
Technical Specifications
Parameter Specification
Product Type Dual PSA Nitrogen Generator (Skid-Mounted)
Purity Range 95%-99.99% (adjustable)
Capacity 10-500 SCFM (customizable)
Dew Point ≤-40°C (at atmospheric pressure)
Service Life 25 years
Control System PLC with auto-switch and alarm functions
Frequently Asked Questions
How does the auto-switch function work?
The PLC continuously monitors both generators. If a fault is detected, it triggers an immediate switch to the backup unit with a typical switching time of <5 seconds.
Can the system operate with only one generator?
Yes. The dual units are designed for independent operation, allowing one to run while the other undergoes maintenance.
What maintenance is required?
Routine maintenance includes replacing air filters (every 6 months), adsorbents (every 3-5 years), and checking valve integrity.
Auto Switch PSA Nitrogen Generator 10-500 SCFM 95-99.99% Purity 0
Applications

Ideal for various industrial applications including chemical plants, oil and gas refineries, food processing plants, hospitals, and laboratories. Provides continuous flow of nitrogen for applications requiring consistent gas supply.

Support and Services
  • Installation and start-up support
  • Operator training and maintenance support
  • 24/7 remote technical assistance
  • Onsite troubleshooting and repair services
  • Preventive maintenance services
  • Upgrade and retrofit services
Packing and Shipping

The PSA Nitrogen Generator comes in a sturdy cardboard box with foam inserts. Plywood box or other packing can be provided by GASPU. Shipping options include EXW, FCA, or FOB.

Keywords: Auto Switch Nitrogen Generator, Uninterruptible Nitrogen Supply, Dual PSA N2 Generator, Skid-Mounted Nitrogen System, Industrial Nitrogen Generator
