Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: MD
Document: GASPU nitrogen generators.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Plywood or other type
Delivery Time: 35work days
Payment Terms: T/T
Supply Ability: 8set/month
|
Warranty:
|
1 Year
|
Usage:
|
Nitrogen
|
Condition:
|
New
|
Voltage:
|
220v/380v/50-60hz
|
Purity:
|
95%-99.9995%
|
Power(w):
|
0.5kw
|
Color:
|
Customized
|
Technology:
|
Pressure Swing Adsorbtion (PSA)
|
Product Name:
|
PSA Nitrogen Generator
|
Type:
|
Pressure Swing Adsorption(PSA)
|
Capacity:
|
5~1200m3/h
|
|
Warranty:
|
1 Year
|
|
Usage:
|
Nitrogen
|
|
Condition:
|
New
|
|
Voltage:
|
220v/380v/50-60hz
|
|
Purity:
|
95%-99.9995%
|
|
Power(w):
|
0.5kw
|
|
Color:
|
Customized
|
|
Technology:
|
Pressure Swing Adsorbtion (PSA)
|
|
Product Name:
|
PSA Nitrogen Generator
|
|
Type:
|
Pressure Swing Adsorption(PSA)
|
|
Capacity:
|
5~1200m3/h
|
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Usage | Nitrogen |
| Condition | New |
| Voltage | 220v/380v/50-60hz |
| Purity | 95%-99.9995% |
| Power(w) | 0.5kw |
| Color | customized |
| Technology | Pressure Swing Adsorbtion (PSA) |
| Product name | PSA Nitrogen Generator |
| Type | Pressure Swing Adsorption(PSA) |
| Capacity | 5~1200m3/h |

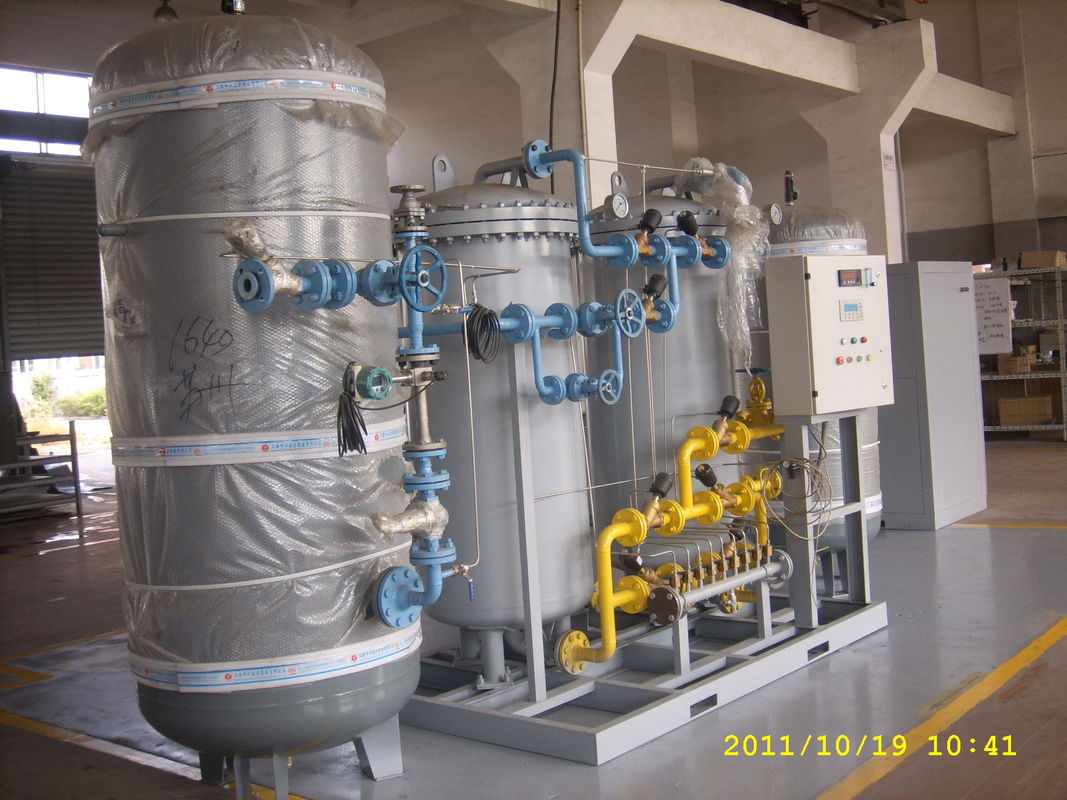

Transform your existing compressed air into a safe, efficient, and reliable stream of high-purity nitrogen right at your facility with our advanced Fully Automatic Pressure Swing Adsorption (PSA) Nitrogen Generator. Engineered for general industrial applications, this system eliminates delivery hassles, rental fees, and safety risks associated with cylinders or liquid nitrogen, delivering significant cost savings and operational simplicity.
Our PSA technology utilizes specialized Carbon Molecular Sieve (CMS) to selectively adsorb oxygen, moisture, and impurities from compressed air under pressure, delivering continuous high-purity nitrogen production.
| Parameter | Specification Range |
|---|---|
| Nitrogen Purity | 95% - 99.999% (Adjustable) |
| Capacity (Flow Rate) | 5 Nm³/h - 1500 Nm³/h |
| Dew Point | ≤ -40°C |
| Air Source Pressure | 0.75 MPa - 1.0 MPa (7.5 - 10 bar) |
| Nitrogen Output Pressure | 0.1 MPa - 0.6 MPa (1 - 6 bar) |
| Construction Materials | Carbon Steel, Stainless Steel 304 |
Maintenance is minimal, primarily involving servicing standard compressed air pre-treatment filters/dryers and periodic checks. The CMS has a long lifespan, especially with Blizzard Loading. Analyzers are maintenance-free.
The system achieves target purity very rapidly, typically within 10-15 minutes of startup.
Yes! Purity is conveniently adjustable via the system's automation, primarily controlled by regulating the amount of waste gas vented.
You need a reliable compressor providing clean, dry air at 0.75 - 1.0 MPa. Adequate flow (CFM) must match the generator's capacity. Robust pre-filtration and drying are critical.
Absolutely. Once configured, the system runs continuously unattended with single-button start/stop. Advanced controls handle all PSA cycles, purity monitoring, and safety functions autonomously.
Take control of your nitrogen supply with our Fully Automatic PSA Nitrogen Generator delivering high-purity nitrogen on-demand, boosting efficiency, safety, and your bottom line.
Request your customized quotation today based on your specific flow rate, purity, and pressure requirements.
