Product Details
Place of Origin: CHINA
Brand Name: GASPU
Certification: CE
Model Number: NG
Document: GASPU nitrogen generators.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Plywood or other type
Delivery Time: 25work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 4set/month
|
Advantage:
|
Low Power Consumption
|
Air Compressor:
|
Equip
|
Material:
|
Aluminum Alloy
|
Adsorption Pressure:
|
0.8-1.0 MPa
|
Operation Mode:
|
Fully Automatic
|
Life Span:
|
8-10 Years
|
Power:
|
7.5-600 KW(Shaft Power)
|
Flow Rate:
|
3~80L
|
Voltage:
|
According To Customers'
|
Raw Material:
|
Compressed Air
|
Feature:
|
High Purity
|
Description:
|
Nitrogen Generator
|
Adsorbent:
|
CMS
|
Operating Temperature:
|
5°C - 50°C
|
Control System:
|
PLC
|
|
Advantage:
|
Low Power Consumption
|
|
Air Compressor:
|
Equip
|
|
Material:
|
Aluminum Alloy
|
|
Adsorption Pressure:
|
0.8-1.0 MPa
|
|
Operation Mode:
|
Fully Automatic
|
|
Life Span:
|
8-10 Years
|
|
Power:
|
7.5-600 KW(Shaft Power)
|
|
Flow Rate:
|
3~80L
|
|
Voltage:
|
According To Customers'
|
|
Raw Material:
|
Compressed Air
|
|
Feature:
|
High Purity
|
|
Description:
|
Nitrogen Generator
|
|
Adsorbent:
|
CMS
|
|
Operating Temperature:
|
5°C - 50°C
|
|
Control System:
|
PLC
|
| Attribute | Value |
|---|---|
| Advantage | Low Power Consumption |
| Air Compressor | Equip |
| Material | Aluminum Alloy |
| Adsorption Pressure | 0.8-1.0 MPa |
| Operation Mode | Fully Automatic |
| Life Span | 8-10 years |
| Power | 7.5-600 KW (Shaft power) |
| Flow Rate | 3~80L |
| Voltage | According to customers' requirements |
| Raw Material | Compressed air |
| Feature | High Purity |
| Adsorbent | CMS |
| Operating Temperature | 5°C - 50°C |
| Control System | PLC |

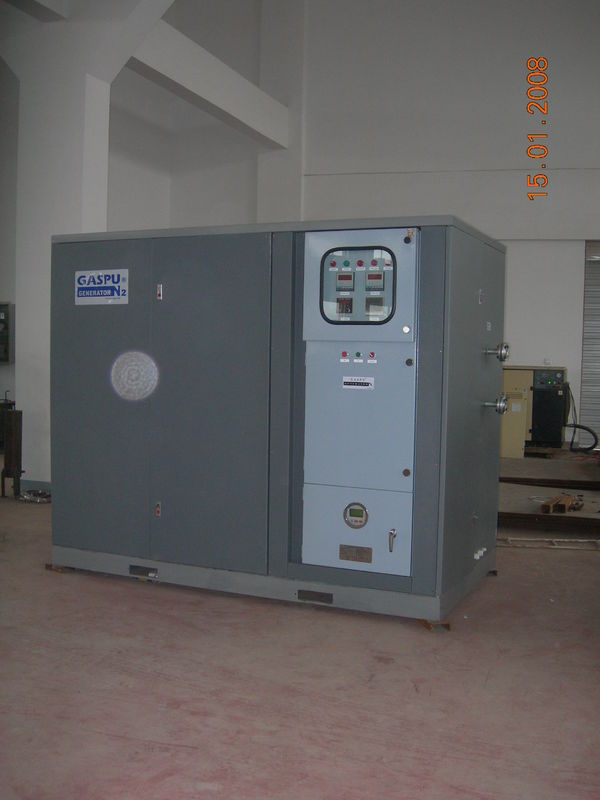

Our Pressure Swing Adsorption (PSA) Nitrogen Generator is an advanced on-site nitrogen production system that delivers high-purity nitrogen gas efficiently and cost-effectively. This system eliminates the need for traditional nitrogen cylinder deliveries, providing businesses with a reliable, on-demand nitrogen supply tailored to specific requirements.
| Parameter | Specification |
|---|---|
| Nitrogen Flow Rate | Up to 50 Nm³/h (customizable) |
| Nitrogen Purity | Maximum 99.99% (adjustable 95% to 99.99%) |
| Operating Pressure | 0.1-0.5 Mpa (adjustable) |
| Nitrogen Dew Point | -40°C (ultra-dry gas) |
| Power Supply | 380V/50Hz (standard) |
| Installation | Compact, skid-mounted design |
PSA Nitrogen Generators use two towers filled with carbon molecular sieve (CMS) adsorbent. Compressed air passes through one tower where CMS adsorbs oxygen, CO₂, and moisture, leaving high-purity nitrogen. The system switches between towers continuously for steady nitrogen supply.
Yes. The system delivers 99.9%+ purity nitrogen with -40°C dew point, ideal for food packaging to extend shelf life by displacing oxygen.
Minimal maintenance: replace air filters every 6-12 months and check CMS media every 3-5 years. The system includes self-diagnostics for maintenance alerts.
Yes. While standard models support 50 Nm³/h, we offer scalable designs for larger industrial needs (100 Nm³/h or more).
Approximately 0.6-0.8 kWh per Nm³ of nitrogen produced, significantly lower than membrane nitrogen generators.
Our PSA Nitrogen Generator stands out for its customizability, cost savings, and reliability. Gain control over your nitrogen supply chain while reducing costs and environmental impact. Backed by global technical support and a 2-year warranty.
Contact us today for a customized quote and technical consultation!
