Portable PSA Nitrogen Generator 1-100Nm3/h 0.1-1.2MPa

Product Details

Place of Origin: china

Brand Name: GASPU

Certification: ce

Model Number: PD

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10000/set

Packaging Details: regular packaging

Delivery Time: 75 working days

Payment Terms: T/T

Supply Ability: 1set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            Portable psa n2 generator, Movable psa n2 generator, gaspu psa n2 generator


Package:	Export Standard Packing	Medium:	Clean N2
Manufacturer:	Yes	Outlet Pressure:	0.1-1.2MPa
Characteristcs:	Portable Movable	Power Supply:	AC 220V/380V/415V
Control Method:	SIEMENS Auto Control	Air Factor:	2.6~3.5
Transport Package:	Container Loading	Nitrogen Capacity:	1 ~100Nm3/h
Origin:	Suzhou, China	Capcity:	100 Nm3/h
Color:	Bright Or Customized	Operating Temperature:	5-45℃
Control Power Supply:	0.2kw 220v 50Hz

Package:	Export Standard Packing
Medium:	Clean N2
Manufacturer:	Yes
Outlet Pressure:	0.1-1.2MPa
Characteristcs:	Portable Movable
Power Supply:	AC 220V/380V/415V
Control Method:	SIEMENS Auto Control
Air Factor:	2.6~3.5
Transport Package:	Container Loading
Nitrogen Capacity:	1 ~100Nm3/h
Origin:	Suzhou, China
Capcity:	100 Nm3/h
Color:	Bright Or Customized
Operating Temperature:	5-45℃
Control Power Supply:	0.2kw 220v 50Hz

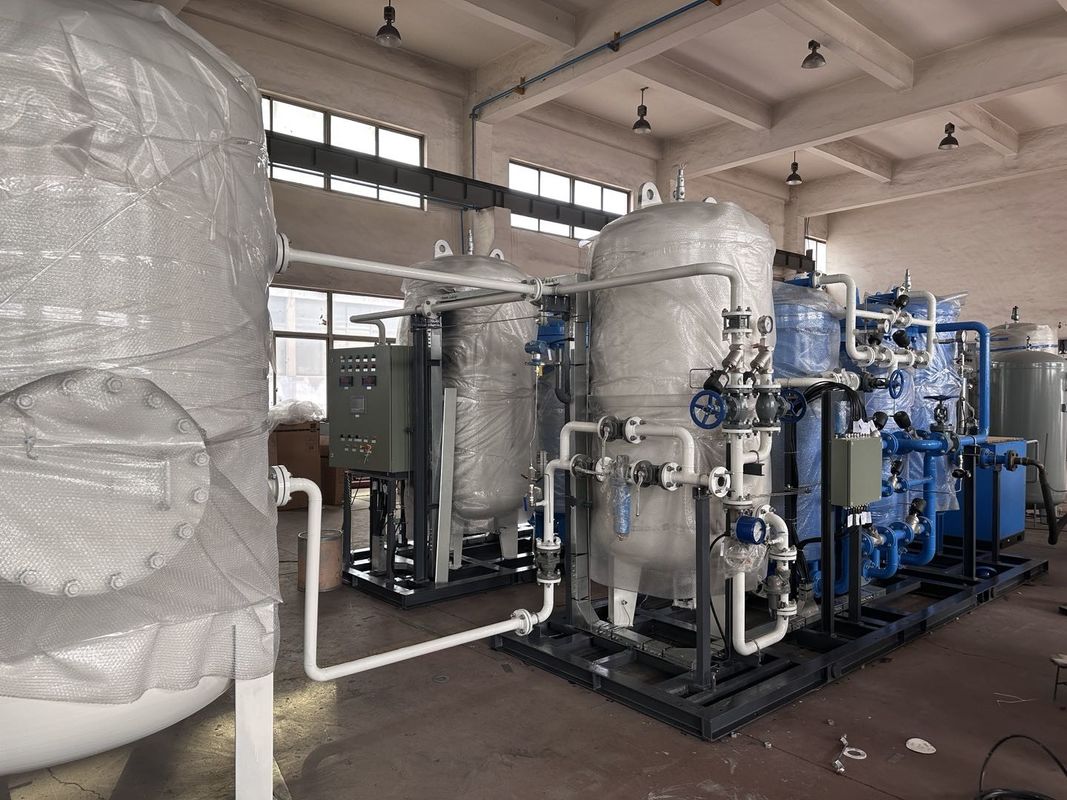

Portable PSA Nitrogen Generator 1-100Nm3/h 0.1-1.2MPa

Portable Movable GASPU PSA N2 Generator 0.1-1.2MPa

Product Attributes

Attribute	Value
Package	Export standard packing
Medium	Clean N2
Manufacturer	Yes
Outlet Pressure	0.1-1.2MPa
Characteristics	Portable movable
Power Supply	AC 220V/380V/415V
Control Method	SIEMENS Auto Control
Air Factor	2.6~3.5
Transport Package	Container Loading
Nitrogen Capacity	1 ~100Nm3/h
Origin	Suzhou, China
Capacity	100 Nm3/h
Color	Bright or customized
Operating Temperature	5-45℃
Control Power Supply	0.2kw 220v 50Hz

GASPU PSA Nitrogen Generators & Instrument Air Equipment

GASPU is a leading manufacturer of PSA (Pressure Swing Adsorption) nitrogen generators and instrument air equipment, trusted by gas power plants worldwide. Our equipment ensures uninterrupted nitrogen supply and clean instrument air, critical for operational safety, equipment longevity, and regulatory compliance in gas-fired power plants.

Product Features & Advantages

Advanced PSA Technology for Nitrogen Generation

GASPU's PSA nitrogen generators utilize cutting-edge adsorption technology to produce high-purity nitrogen (95%-99.999%) from ambient air, eliminating the need for expensive bottled nitrogen or liquid nitrogen deliveries.

Rapid Start-Up & Continuous Operation: Achieves full production within 15-30 minutes and operates 24/7 with minimal downtime
Modular Design: Compact, skid-mounted units save space and allow easy integration
Energy Efficiency: Low power consumption (0.3-0.6 kWh/Nm³) with automatic load adjustment

High-Performance Instrument Air Systems

Our instrument air equipment provides clean, dry, and oil-free compressed air (ISO 8573-1 Class 1.2.1) for pneumatic tools, control valves, and monitoring instruments.

Integrated Filtration & Drying: Multi-stage filtration removes particulates, moisture, and oil
Stable Pressure Control: Maintains consistent air pressure (6-10 bar) during peak demand
Low Maintenance: Durable components minimize upkeep and reduce total cost of ownership

Technical Specifications

Parameter	PSA Nitrogen Generator	Instrument Air Equipment
Nitrogen Purity	95%-99.999% (adjustable)	N/A
Flow Rate	5-500 Nm³/h (customizable)	10-1000 Nm³/h
Operating Pressure	0.6-1.0 MPa	6-10 bar
Power Supply	380V/50Hz (three-phase)	380V/50Hz (three-phase)
Energy Consumption	0.3-0.6 kWh/Nm³	0.15-0.3 kWh/Nm³
Air Quality (Instrument)	N/A	ISO 8573-1 Class 1.2.1 (oil-free, dry)

FAQ: Common Questions Answered

Q1: How does PSA technology work for nitrogen generation?

A: PSA systems use carbon molecular sieve (CMS) adsorbents to separate nitrogen from air. Compressed air enters a tower, where oxygen, moisture, and impurities are adsorbed by CMS, leaving high-purity nitrogen. A second tower regenerates the sieve by depressurization, ensuring continuous production.

Q2: What maintenance is required for GASPU equipment?

A: Routine maintenance includes filter replacements (every 6-12 months), desiccant regeneration checks, and annual system inspections. Our modular design allows easy access to components, minimizing downtime.

Q3: Can the equipment be customized for specific plant needs?

A: Yes. GASPU offers tailored solutions for flow rate, purity, and footprint. For example, dual-tower systems provide redundancy for critical applications, while mobile skids suit temporary projects.

Why Choose GASPU?

Cost Savings: Reduces logistics and storage costs by up to 60%
Energy Efficiency: Optimized PSA cycles lower energy consumption
Scalability: Easily expand capacity as plant operations grow
Expertise: 20+ years of experience in power plant applications

GASPU's PSA nitrogen generators and instrument air equipment are the ideal choice for gas power plants seeking reliability, efficiency, and compliance. Backed by global partnerships and a commitment to innovation, we empower plants to operate safely, sustainably, and cost-effectively.

Keywords: PSA nitrogen generator, instrument air equipment, gas power plant solutions, high-purity nitrogen, Atlas gas generator partner, Siemens gas generator compatible, GE gas generator systems, energy-efficient nitrogen production
