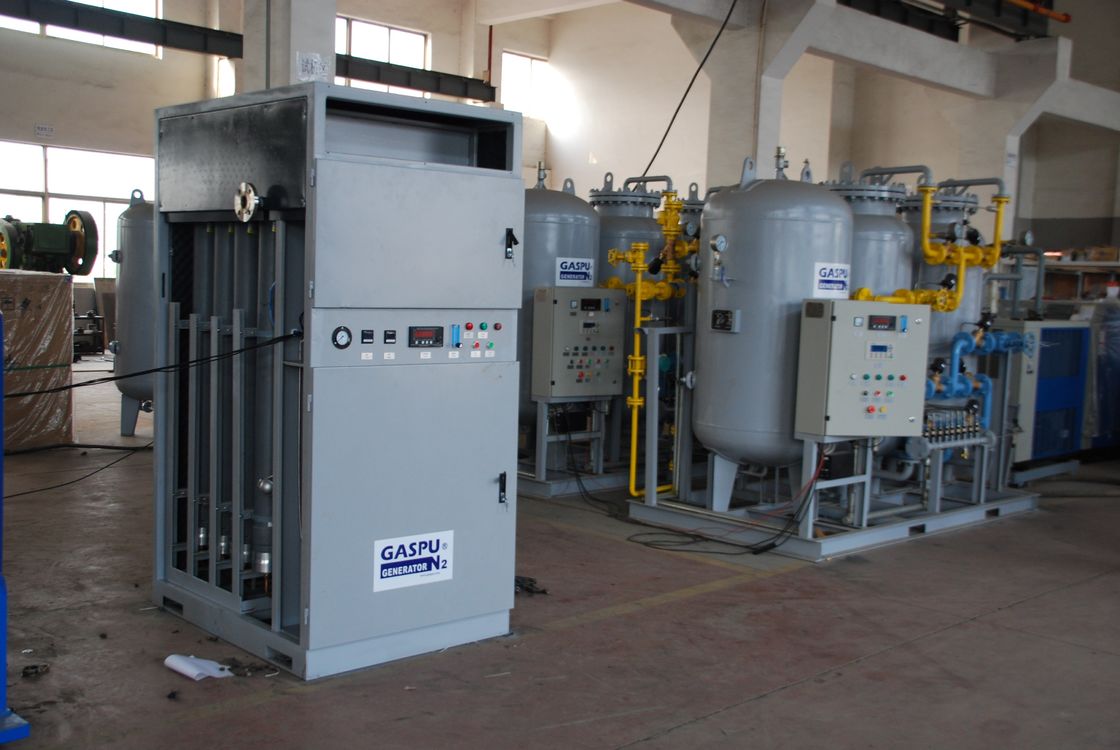

PSA Nitrogen Generator 1000 Nm3/h High Purity for Photovoltaic

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: NG

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10000/set

Packaging Details: plywood or other type

Delivery Time: 75 working days

Payment Terms: T/T

Supply Ability: 2 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            High purity psa based nitrogen plant, High purity nitrogen psa systems, gaspu nitrogen psa systems


Features:	High Purity	Other Name:	Psa Nitrogen Gas Plant
Reliability:	High	Power Supply:	220V/380V, 50Hz/60Hz
Warranty:	1 Years	Certificates:	BV,,CCS,ISO,TS
Advantage:	Energy Saving	Ex Certificate:	IEC Or ATEX Or GB
Outlet Capacity:	1000 Nm3/h	Automatic Control:	Yes
Noise Level:	≤60dB	Capacity:	10-5000 Nm3/h
Medium:	Clean N2	Capaicty:	5~3000 Nm3/h
Frequency:	50Hz+/-1Hz

Features:	High Purity
Other Name:	Psa Nitrogen Gas Plant
Reliability:	High
Power Supply:	220V/380V, 50Hz/60Hz
Warranty:	1 Years
Certificates:	BV,,CCS,ISO,TS
Advantage:	Energy Saving
Ex Certificate:	IEC Or ATEX Or GB
Outlet Capacity:	1000 Nm3/h
Automatic Control:	Yes
Noise Level:	≤60dB
Capacity:	10-5000 Nm3/h
Medium:	Clean N2
Capaicty:	5~3000 Nm3/h
Frequency:	50Hz+/-1Hz

PSA Nitrogen Generator 1000 Nm3/h High Purity for Photovoltaic

High Purity Nitrogen PSA Systems for Photovoltaic Technology

Product Specifications

Attribute	Value
Other Name	PSA Nitrogen Gas Plant
Reliability	High
Power Supply	220V/380V, 50Hz/60Hz
Warranty	1 year
Certificates	BV, CCS, ISO, TS
Features	High purity
Advantage	Energy Saving
Ex Certificate	IEC or ATEX or GB
Outlet Capacity	1000 Nm3/h
Automatic Control	Yes
Noise Level	≤60dB
Capacity Range	10-5000 Nm3/h
Medium	Clean N2

Efficient PV Production with GASPU Nitrogen Generators

In the rapidly expanding photovoltaic (PV) industry, where precision and purity are paramount, high-purity nitrogen gas is indispensable. GASPU Nitrogen Generators provide the critical on-site solution for PV manufacturers, ensuring reliable, cost-effective nitrogen supply for enhanced module quality and production efficiency.

Why Nitrogen is Vital in Photovoltaic Manufacturing

Oxidation Prevention (Protective Gas): Shields sensitive silicon wafers and other materials during high-temperature processes from oxygen-induced degradation, ensuring optimal electronic properties and cell efficiency.
Surface Cleaning (Cleaning Gas): Provides a pure, inert medium for removing contaminants and particulates from wafer surfaces and production equipment without chemical residue.
Encapsulation Integrity (Packaging Gas): Creates an inert atmosphere during the lamination and encapsulation of solar modules, preventing moisture ingress and enhancing module lifespan.
Inert Processing: Used in soldering, laser scribing, and other processes where reactive atmospheres would compromise quality.

GASPU Nitrogen Generators: Engineered for PV Excellence

GASPU systems deliver the purity and reliability demanded by modern PV fabs:

High-Purity Output: Consistently delivers nitrogen purity levels from 99.5% up to 99.999%.
PSA Technology: Reliable, energy-efficient method using advanced carbon molecular sieves (CMS) with minimal moving parts.
Advanced Control Systems: Intelligent PLC controls with intuitive HMI interfaces for precise monitoring and adjustment.
Robust Design: Industrial-grade components with stainless steel piping for continuous operation.
Energy Efficiency: Significantly lower operating costs compared to liquid nitrogen delivery.
On-Demand Production: Generate nitrogen exactly when and where you need it.
Compact Footprint: Modular designs allow for flexible installation.
Low Maintenance: Automated operation and durable components minimize downtime.

Key Advantages for PV Manufacturers

Substantial Cost Reduction: Typically 40-80% savings compared to liquid nitrogen costs.
Enhanced Production Reliability: Eliminates risks of supply chain disruptions.
Guaranteed Purity & Consistency: Maintains stringent purity specifications critical for cell efficiency.
Improved Sustainability: Reduces carbon footprint associated with liquid nitrogen transportation.
Operational Control & Flexibility: Full control over gas supply parameters.

Technical Specifications

Parameter	Typical Range/Value	Notes
Output Purity	99.5% - 99.999%	Configurable based on process stage
Flow Rate	10 Nm³/h - 500 Nm³/h+	Wide range available
Output Pressure	4 bar(g) - 9 bar(g)	Standard; higher pressures available
Dew Point	-40°C to -70°C	Ensures extremely dry gas
Technology	PSA (Pressure Swing Adsorption)	Proven, reliable, efficient
Control System	PLC with Touchscreen HMI	Often includes remote monitoring
Power Supply	Standard Industrial (e.g., 380V/50Hz)	Compliant with local requirements

Frequently Asked Questions

What purity level do I need for my PV manufacturing processes?

Requirements vary. Diffusion/PECVD often demands the highest purity (99.999%+). Cleaning and encapsulation typically require 99.9% - 99.99%. GASPU can tailor the system to your specific process needs.

How much can I save by switching to an on-site GASPU generator from liquid nitrogen?

Savings are typically 40-80% compared to liquid nitrogen costs, depending on volume, delivery frequency, location, and local energy costs.

Are GASPU generators reliable enough for continuous 24/7 PV production?

Absolutely. GASPU PSA generators are designed for industrial, continuous operation with robust construction and sophisticated controls.

My factory is expanding. Can the nitrogen generator be upgraded?

Yes, modularity is a key feature of GASPU systems. Capacity can often be increased by adding modules or upgrading components.

Invest in Purity, Efficiency, and Control with GASPU

GASPU Nitrogen Generators are the strategic solution for photovoltaic manufacturers seeking to optimize production costs, guarantee gas purity, ensure uninterrupted supply, and enhance the quality and longevity of their solar modules.
