PSA Nitrogen Generator 150Nm³/hr 99.99% Purity for Pharmaceuticals

Product Details

Place of Origin: China

Brand Name: Gaspu

Certification: CE

Model Number: NG

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD10000/set

Packaging Details: Plywood and other types

Delivery Time: 75working days

Payment Terms: T/T

Supply Ability: 2 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            PSA Nitrogen Generator Unit, Centralized PSA Nitrogen Generator, Pharmaceuticals nitrogen psa unit


Stabdard:	Chinese Standard	Advantage:	High Pressure
Showroom Location:	None	Inlet Diameter:	DN25
Output Flow:	5Nm3/h--2000Nm3/h	Outlet Pressure:	0.1-0.65MPa
Marketing Type:	Hot Product 2022	Nitrogen Dew Point:	-40℃ Or -60℃
Voltage:	220v/380v	Air Compressor:	Equip
Applciation:	Chemical Fibre	Nitrogen Output:	Continuous
Capacity:	5-5000 Nm3/h	Minimum Order:	1set
Dew Point:	-40°C

Stabdard:	Chinese Standard
Advantage:	High Pressure
Showroom Location:	None
Inlet Diameter:	DN25
Output Flow:	5Nm3/h--2000Nm3/h
Outlet Pressure:	0.1-0.65MPa
Marketing Type:	Hot Product 2022
Nitrogen Dew Point:	-40℃ Or -60℃
Voltage:	220v/380v
Air Compressor:	Equip
Applciation:	Chemical Fibre
Nitrogen Output:	Continuous
Capacity:	5-5000 Nm3/h
Minimum Order:	1set
Dew Point:	-40°C

PSA Nitrogen Generator 150Nm³/hr 99.99% Purity for Pharmaceuticals

Pharmaceuticals Centralized On Site PSA Nitrogen Generator Unit

Product Specifications

Attribute	Value
Standard	Chinese Standard
Advantage	High Pressure
Inlet Diameter	DN25
Output Flow	5Nm3/h--2000Nm3/h
Outlet Pressure	0.1-0.65MPa
Nitrogen Dew Point	-40℃ or -60℃
Voltage	220v/380v
Air Compressor	Equip
Application	Chemical fibre
Nitrogen Output	Continuous
Capacity	5-5000 Nm3/h
Minimum Order	1set

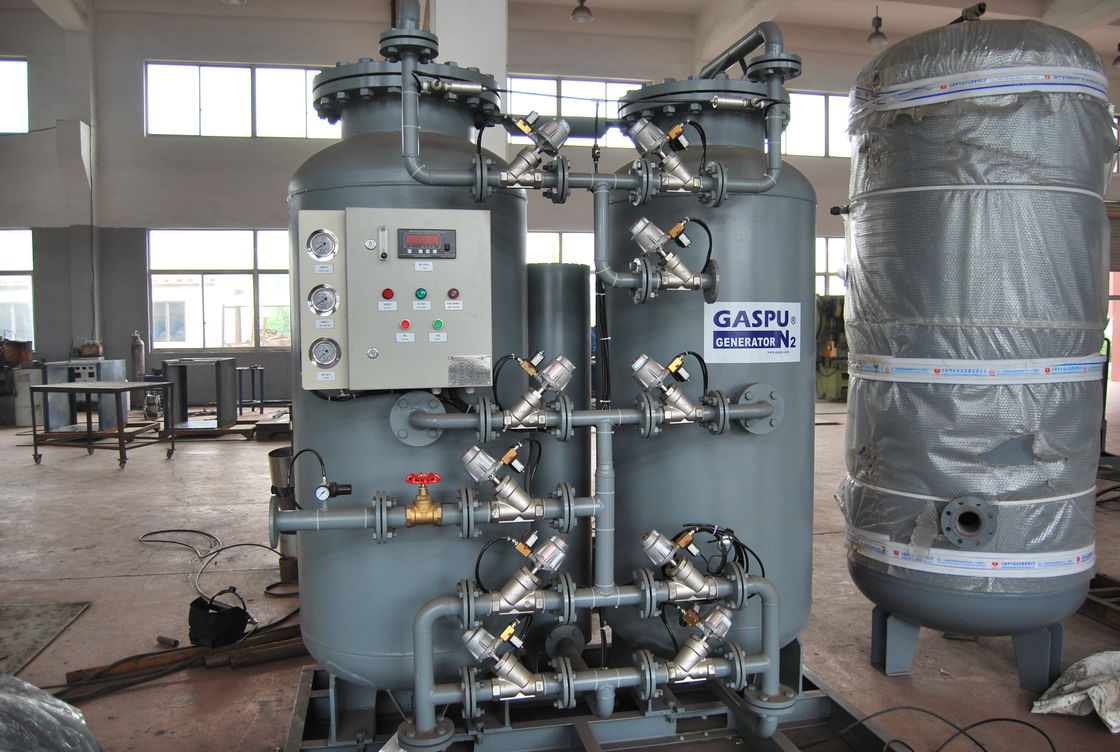

GASPU 150Nm³/hr 99.99% High-Purity Nitrogen Generator

The ultimate centralized nitrogen supply solution for industries requiring reliable, on-site nitrogen generation. Engineered with PSA technology for stable performance, energy efficiency, and customizable purity.

Key Features & Advantages

Adjustable Purity Range: Delivers 99.99% nitrogen standard, adjustable from 95% to 99.9995%
Low Dew Point: ≤ -45°C for moisture-sensitive processes
Optimized Air Consumption: Minimizes operational costs
Parallel Operation Capability: Scalable output without system overhauls
Durable PSA Technology: Long service life with minimal maintenance
Hygienic Design: Meets strict cleanliness standards
Stable Output: 150Nm³/hr continuous flow
Safety Compliance: Built-in safety features

Technical Specifications

Parameter	Details
Nitrogen Flow Rate	150Nm³/hr
Purity (Standard)	99.99%
Purity Range	95% - 99.9995% (adjustable)
Dew Point	≤ -45°C
Power Supply	380V/50Hz (customizable)
Compressed Air Requirement	Low energy consumption
Warranty	2-year manufacturer warranty

Industry Applications

Oil & Gas: Pipeline injection (95% purity)
Pharmaceuticals: Inert packaging and blanketing
Electronics: Soldering, semiconductor manufacturing
Food & Beverage: Preservation and packaging
Metal Processing: Laser cutting, heat treatment

Frequently Asked Questions

How does a PSA nitrogen generator work?

PSA technology uses carbon molecular sieves (CMS) to separate nitrogen from air. Compressed air enters the generator where CMS adsorbs oxygen, water vapor, and impurities, leaving high-purity nitrogen to flow out.

What is the advantage of on-site nitrogen generation?

Eliminates delivery delays, reduces costs, and ensures 24/7 supply. GASPU's model saves energy with low compressed air consumption, cutting operational expenses by up to 30%.

Can the generator be adjusted for different purity levels?

Yes. The system allows easy adjustment of purity from 95% to 99.9995% via a user-friendly control panel.

Why Choose GASPU?

Trusted by 2,000+ customers in 40+ countries
Cost-effective on-site generation
Energy-efficient, sustainable design
Custom solutions for flow rate and purity

Keywords: high-purity nitrogen generator, 150Nm³/hr nitrogen generator, PSA nitrogen system, centralized nitrogen supply, GASPU nitrogen generator, on-site nitrogen production, 99.99% nitrogen purity
