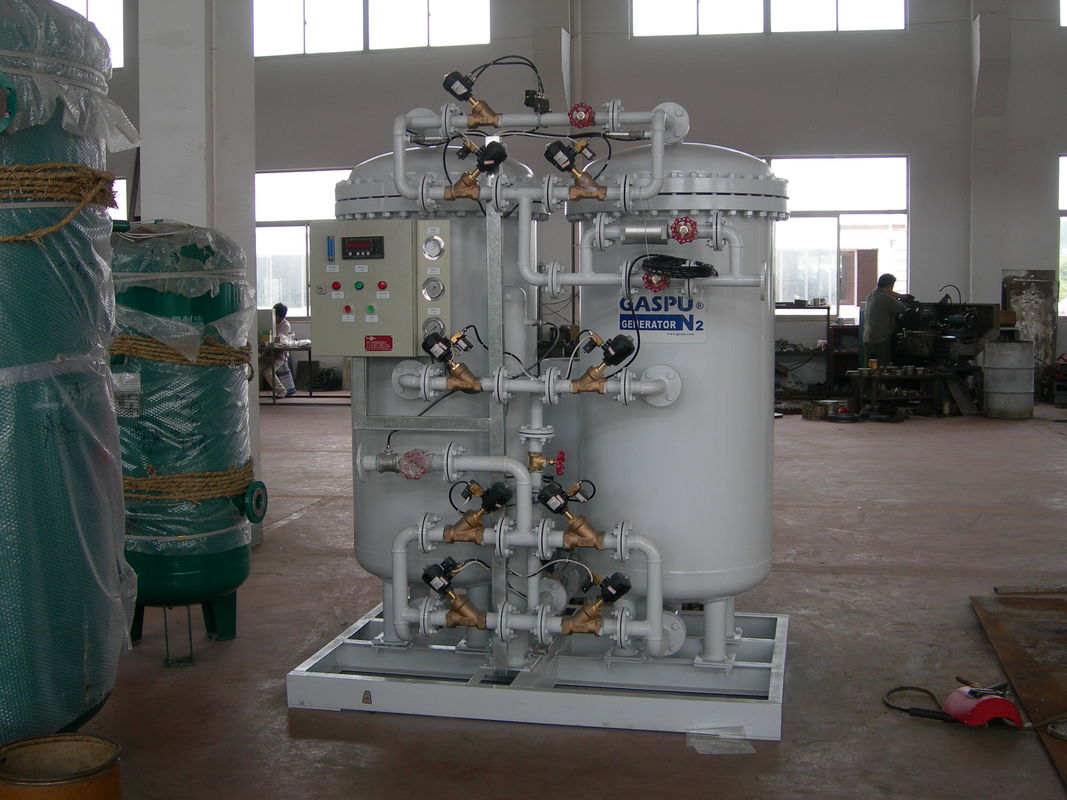

PSA Nitrogen Generator with Carbon Molecular Sieve 5-5000Nm3/hr

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: NG

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood or other type

Delivery Time: 25work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            ASME PSA Nitrogen Generator, N2 Separation PSA Nitrogen Generator, ASME psa generator


Atmospheric Dew Point:	≤－40℃	Main Material:	Carbon Steel&Stainless Steel
Performance:	High Performance	Flow:	5-5000Nm3/hr
Power Consumption:	0.75 Kw	Adsorption Material:	Carbon Molecular Sieve
Package Size:	42x40x61cm	Keyword:	Psa Nitrogen Generator
Air Consumption:	10m3/min	Temperature:	27 ℃
Control System:	PLC Control	Recommend Air Compressor:	4Kw （0.4 M3/min8Bar )
Type:	NITROGEN PSA	Psa Vessel:	Carbon,stainless
Product Brand:	Atlas Copco

Atmospheric Dew Point:	≤－40℃
Main Material:	Carbon Steel&Stainless Steel
Performance:	High Performance
Flow:	5-5000Nm3/hr
Power Consumption:	0.75 Kw
Adsorption Material:	Carbon Molecular Sieve
Package Size:	42x40x61cm
Keyword:	Psa Nitrogen Generator
Air Consumption:	10m3/min
Temperature:	27 ℃
Control System:	PLC Control
Recommend Air Compressor:	4Kw （0.4 M3/min8Bar )
Type:	NITROGEN PSA
Psa Vessel:	Carbon,stainless
Product Brand:	Atlas Copco

PSA Nitrogen Generator with Carbon Molecular Sieve 5-5000Nm3/hr

ASME PSA Nitrogen Generator Air Compressing System For O2 N2 Separation

Attribute	Value
Atmospheric Dew Point	≤－40℃
Main Material	Carbon Steel & Stainless Steel
Performance	High Performance
Flow	5-5000Nm3/hr
Power Consumption	0.75 kw
Adsorption Material	Carbon Molecular Sieve
Package Size	42×40×61cm
Air Consumption	10m3/min
Temperature	27 ℃
Control System	PLC control
Recommend Air Compressor	4Kw (0.4 m3/min8Bar)
Type	NITROGEN PSA
Psa Vessel	Carbon, stainless
Product Brand	Atlas Copco

Industrial-Grade PSA Nitrogen Generator with Carbon Molecular Sieve Adsorbent

Unlock reliable, high-purity nitrogen generation for your industrial applications with our advanced Pressure Swing Adsorption (PSA) Nitrogen Generator. Engineered with precision German technology and featuring premium Carbon Molecular Sieve (CMS) adsorbent, this system delivers unmatched efficiency and automation for continuous nitrogen production onsite.

Core Product Features & Technology

Our PSA Nitrogen Generator integrates four optimized subsystems for seamless operation:

Air Compressing System: Industrial air compressor + air buffer tank compresses ambient air to high pressure (1-8 barg), providing the necessary intake volume.
Air Purification System: Degreaser, refrigerated/adsorption dryer, ultrafilter, and active carbon filter remove 99.9% of contaminants including oil, water vapor, and particulates, ensuring ultra-clean, dry air (-45°C dew point) for optimal CMS performance.
Air Buffer System: Dedicated buffer tank + valves stabilize compressed air supply, eliminating pressure fluctuations for consistent N₂ separation.
Adsorption Separation System (PSA Core): Twin adsorber towers filled with high-selectivity CMS, program control valves, PLC controller, and purity analyzer separate O₂ from air via pressure swing adsorption, delivering high-purity nitrogen (up to 99.99%) at your required flow rate.

Key Competitive Advantages

German Collaboration Technology: Proprietary engineering enhances CMS efficiency and tower design, maximizing nitrogen yield and adsorbent lifespan.
Fully Automated Operation: Intelligent PLC control enables 24/7 unmanned production with real-time monitoring and alerts.
Ultra-Low Power Consumption: Optimized airflow design minimizes energy use (only 0.2 kW power requirement), reducing OPEX significantly.
Zero Liquid Waste: PSA technology is eco-friendly vs. membrane systems - no chemicals or water used.

Technical Specifications

N₂ Capacity: 100 Nm³/h

N₂ Purity: Up to 99.99%

N₂ Dew Point: -45°C

Output Pressure: 1-8 barg (adjustable)

Power Supply: 110V-240V / 50-60Hz, 0.2kW

Frequently Asked Questions

Why is air purification critical before the PSA towers?

Impurities like oil or moisture permanently damage carbon molecular sieves. Our 4-stage purification guarantees >99.9% contaminant removal, protecting your CMS investment and ensuring stable purity.

Can the system adapt to varying nitrogen demands?

Yes! The PLC controller automatically adjusts cycle times based on real-time gas usage. Buffer tanks provide surge capacity during peak demand.

How does German engineering improve performance?

Collaborative R&D refined tower pressure profiles, valve sequencing, and CMS regeneration cycles. This cuts compressed air waste by ~20% vs. standard PSA units, directly lowering energy costs.

Ideal Applications

Metal processing, electronics manufacturing, food & beverage packaging, pharmaceutical blanketing, and chemical inerting - anywhere clean, dry, high-purity nitrogen is mission-critical.

Invest in Self-Sufficient Nitrogen Production: Eliminate cylinder rental logistics, reduce costs by up to 80%, and gain total process control.

PSA Nitrogen Generator, Carbon Molecular Sieve Adsorbent, Nitrogen Gas Plant, Industrial Nitrogen System, CMS Technology, Automated N₂ Generation, High-Purity Nitrogen
