GB150 Standard Psa N2 Generator For Nitrogen Gas Custom

120Nm3/h@99.99%, ASME/GB150 standards are optional and can be customized to meet the diverse needs of users

Introduction :

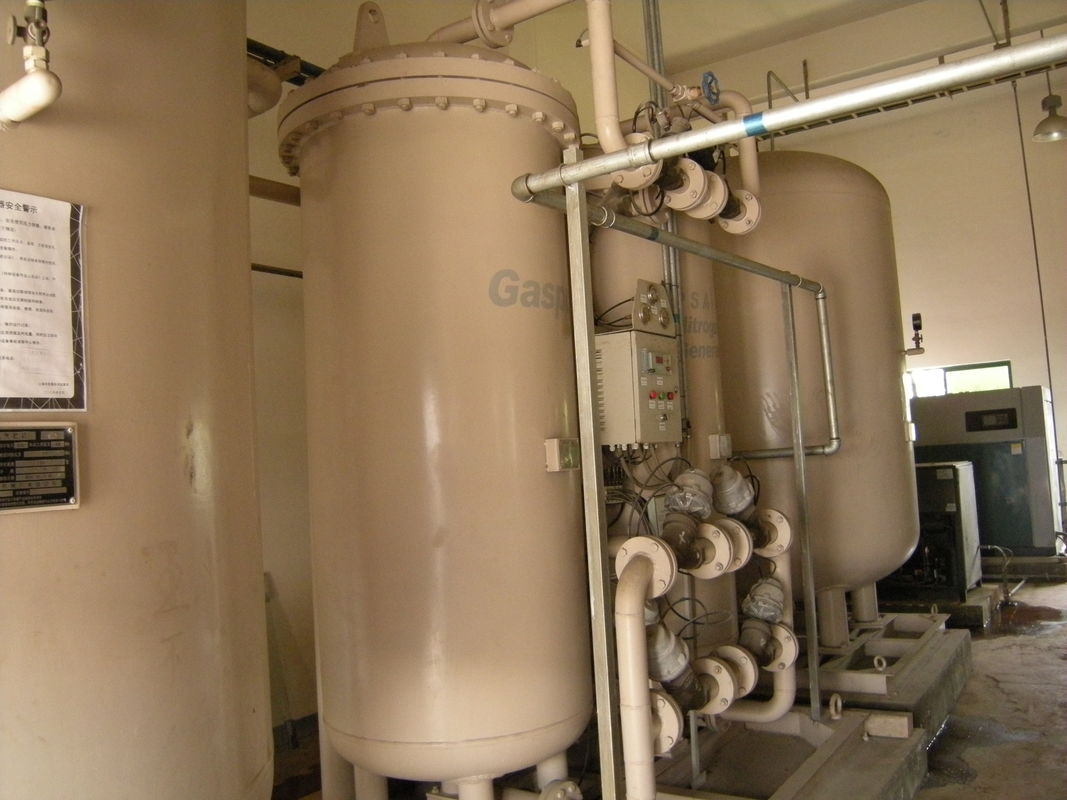

GASPU N2 generator Skid, on-site nitrogen generator, nitrogen Generation skids pull air from the atmosphere, separate the nitrogen from the rest of the gasses, and compress the nitrogen gas for compressed nitrogen use for any process that requires nitrogen.
Nitrogen is one of the most abundant gasses(78% in air )on earth, and most of the cost associated with the purchase of nitrogen is due to the processing of the gas.
Our nitrogen widely used for many industries, like Oil & gas, heat treatment, food, pharmacy, new energy, aerospace, steel, marine, automobile etc..


Technical features :

1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system, when it reach the floor level of journey, the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface, it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.

Specification:

· N2 Capacity:120Nm3/h

· N2 Purity: 99.99%

· N2 Dew point: -45℃

·N2 pressure:1-8barg

Power:0.2kw 110V-240V/50-60Hz
