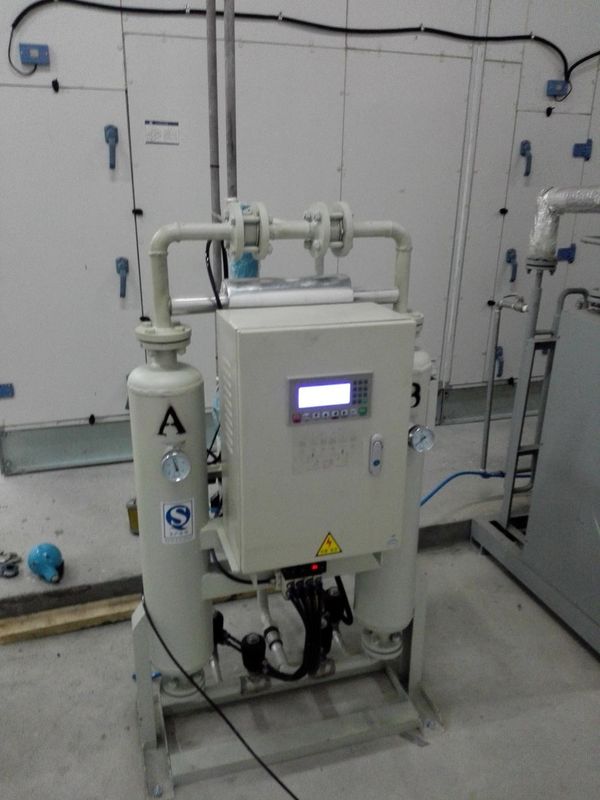

Low Dew Point Heatless Air Dryer System with Analyzer -40℃ to -70℃

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CE

Model Number: UAD

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiate

Packaging Details: Plywood or other type

Delivery Time: 75work days

Payment Terms: T/T

Supply Ability: 4set/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    101ppm instrument air dryer package, Low Dew Point instrument air dryer package, 101ppm instrument air dryer system


Material:	CS Or SS	Standard:	GB150/ASME
Capacity:	1-85m3/min	Dew Point:	Below-40℃
Process:	Heatless And Freeze	Power:	110-230V 50Hz 0.2kw
Color:	Customizable	Work Pressure:	5-13barg

Material:	CS Or SS
Standard:	GB150/ASME
Capacity:	1-85m3/min
Dew Point:	Below-40℃
Process:	Heatless And Freeze
Power:	110-230V 50Hz 0.2kw
Color:	Customizable
Work Pressure:	5-13barg

Low Dew Point Heatless Air Dryer System with Analyzer -40℃ to -70℃

101ppm Low Dew Point Instrument Air Dryer Package System With Analyzer

Product Specifications

Material: CS or SS

Standard: GB150/ASME

Capacity: 1-85m³/min

Dew point: Below -40℃

Process: Heatless and Freeze

Power: 110-230V 50Hz 0.2kw

Color: Customizable

Work pressure: 5-13barg

Product Overview

The Low Dew Point Air Dryer with Analyzer is an advanced industrial compressed air treatment system that delivers ultra-dry air with precision. This heatless regeneration adsorption dryer effectively removes moisture, oil, and contaminants for optimal performance in demanding applications.

Key Features

Multi-stage filtration system for superior air purification
Heatless regeneration adsorption dryer with alumina or molecular sieves
Pressure swing adsorption (PSA) technology for energy efficiency
Final filter with 0.01μm precision for dust-free output
Integrated dew point analyzer with standard dew point of 101ppm (-40°C)
Optional upgrade to 2.9ppm (-70°C) for ultra-sensitive operations
Movable and customizable design with capacities from 10 to 600 SCFM
20-year service life for long-term reliability

Key Advantages

Energy Saving & Environmental Friendliness

Reduces energy consumption by up to 30% compared to heated dryers with zero pollutants emission.

Stable Performance & Reliability

Maintains consistent dew point of -40°C to -70°C for critical applications in electronics, food processing, and pharmaceuticals.

Low Maintenance & Ease of Use

Simplified structure requires only annual replacement of adsorbents or filters, minimizing downtime.

Versatility & Customization

Adaptable to various capacities (1-85 m³/min) and pressure ranges (6.5-13 barg) with custom designs available.

Cost-Effectiveness

20-year lifespan and optional air compressor integration ensure long-term savings.

Technical Specifications

Product	Combination Air Dryer with Freeze Dryer
Dew Point	101ppm (Option: 2.9ppm)
Capacity Range	10-600 SCFM
Inlet Pressure	6.5-13 barg
Service Life	20 Years
Movable Design	Yes
Air Compressor	Optional Integration

Frequently Asked Questions

What is the achievable dew point, and how is it measured?

The standard dew point reaches 101ppm (-40°C), with an optional analyzer lowering it to 2.9ppm (-70°C). This is monitored via built-in sensors for real-time accuracy in applications like semiconductor manufacturing.

How does the heatless regeneration process work?

Using pressure swing adsorption, the dryer regenerates adsorbents by depressurizing the bed—no external heat is required. This method ensures energy savings and reduces operational costs by up to 25%.

What maintenance is involved?

Install in a ventilated, dry area and perform routine checks: replace adsorbents every 2-3 years, clean filters quarterly, and inspect dew points monthly. Avoid overloads to prevent damage.

Which industries benefit most from this dryer?

Ideal for electronics (PCB production), food and beverage (to prevent spoilage), chemicals, and pharmaceuticals, thanks to its contaminant-free output and stable dew point.

Is the dryer customizable and movable?

Yes, we offer tailored designs—including ASME-certified vessels—and a movable frame for flexible deployment in plants or remote sites. Capacities extend to 85 m³/min on request.
