Fully Automated PSA Nitrogen Generator 99.9995% Purity

Name: Fully Automated PSA Nitrogen Generator 99.9995% Purity
Brand: Suzhou Gaopu Ultra pure gas technology Co.,Ltd
SKU: MNG -100
Price: 10000 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: ccs ce

Model Number: MNG -100

Document: gaspu laboratory gas genera...ts.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10000/set

Packaging Details: plywood or other type

Delivery Time: 75 working days

Supply Ability: 2 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                    Basic Knowledge PSA Nitrogen Generator, Simplified PSA Nitrogen Generator, Working Process PSA Nitrogen Generator


Automation:	Fully Automation	Dscharge Pressure:	0.7-0.85 Mpa
Nitrogen Dew Point:	-40℃ Or -60℃	Purity:	99.999%-99.9995%
Oxygen Producing Method:	PSA Pressure Swing Adsorption	Air Dryer:	Include
Dew Point:	-50℃	Flow Rate:	10-5000 Nm3/hr
Air Compressor:	Option	Sample:	Available
Oem:	Offered	Performance:	High Performance

Automation:	Fully Automation
Dscharge Pressure:	0.7-0.85 Mpa
Nitrogen Dew Point:	-40℃ Or -60℃
Purity:	99.999%-99.9995%
Oxygen Producing Method:	PSA Pressure Swing Adsorption
Air Dryer:	Include
Dew Point:	-50℃
Flow Rate:	10-5000 Nm3/hr
Air Compressor:	Option
Sample:	Available
Oem:	Offered
Performance:	High Performance

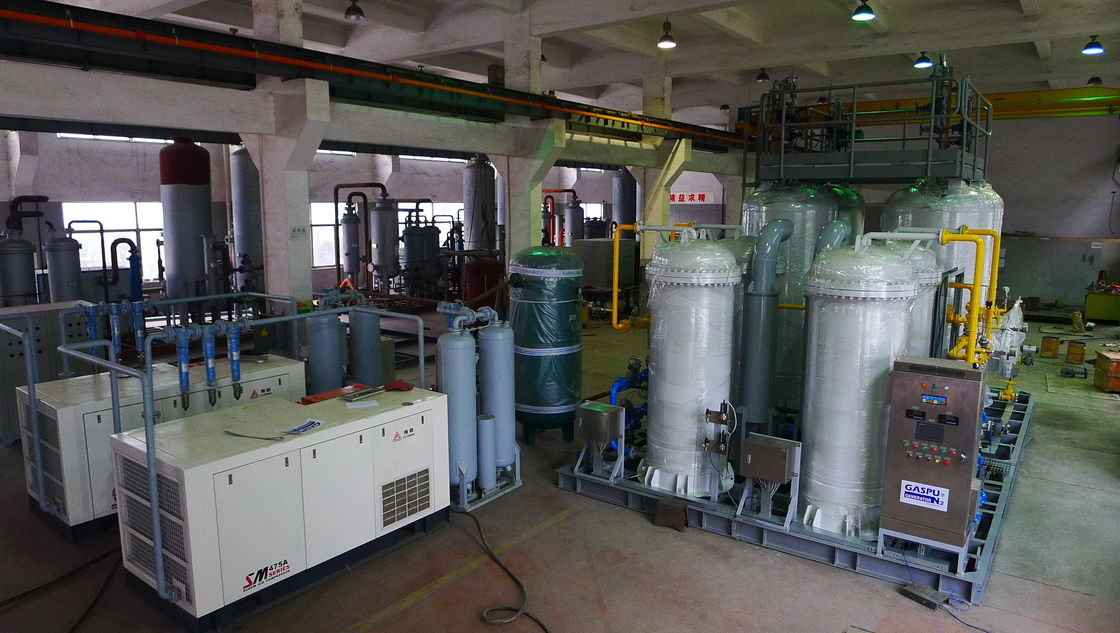

Fully Automated PSA Nitrogen Generator 99.9995% Purity

Working Process And Basic Knowledge Of PSA Nitrogen Generator Simplified

Key Specifications

Automation	Fully Automation
Discharge Pressure	0.7-0.85 Mpa
Nitrogen Dew Point	-40℃ or -60℃
Purity	99.999%-99.9995%
Oxygen Producing Method	PSA Pressure Swing Adsorption
Flow Rate	10-5000 Nm3/hr

Working Principle and Process Flow

The PSA nitrogen generator is an automated system that uses carbon molecular sieves (CMS) as adsorbents to separate nitrogen from air through pressure adsorption and atmospheric desorption.

Basic Knowledge

Gas Properties: Nitrogen (N₂) constitutes 78.084% of air by volume. It's colorless, odorless, and chemically inert with a molecular weight of 28, boiling point of -195.8℃, and condensation point of -210℃.

Pressure Principles: The PSA process operates at optimal adsorption pressure of 0.75-0.9 MPa, utilizing the kinetic energy of compressed air for gas separation.

Working Principle

CMS pressure swing adsorption nitrogen generators use specially processed carbon molecular sieves with precisely controlled pore sizes (0.3-0.5 nm) to dynamically separate oxygen (O₂) and nitrogen (N₂) based on their different diffusion rates.

PSA Nitrogen Generator: Features & Advantages

Key Features

Efficient nitrogen production with purity adjustable from 95% to 99.9995%
Compact, automated design with PLC control and touchscreen interface
Energy efficient operation (0.3-0.6 kWh/Nm³)
Dual-tower configuration for continuous nitrogen supply
High-quality CMS with 5-8 year lifespan

Technical Specifications

Nitrogen Purity	95%-99.9995%
Flow Rate	0.1-500 Nm³/h (customizable)
Operating Pressure	0.75-0.9 MPa (adsorption)
Power Supply	220V/380V, 50/60Hz

Frequently Asked Questions

How does a PSA Nitrogen Generator work?

The system uses two adsorption towers filled with CMS. Compressed air enters the first tower where O₂ is adsorbed under pressure while nitrogen exits as product gas. When saturated, the system switches to the second tower while the first depressurizes to release adsorbed O₂.

What maintenance is required?

Daily: Check pressure gauges and filters
Monthly: Replace air filters
Annually: Inspect CMS and valves

Why Choose Our PSA Nitrogen Generator?

24/7 technical support with global service network
Custom solutions for purity, flow rate and pressure requirements
Energy-saving design reduces electricity costs by 30% versus competitors
