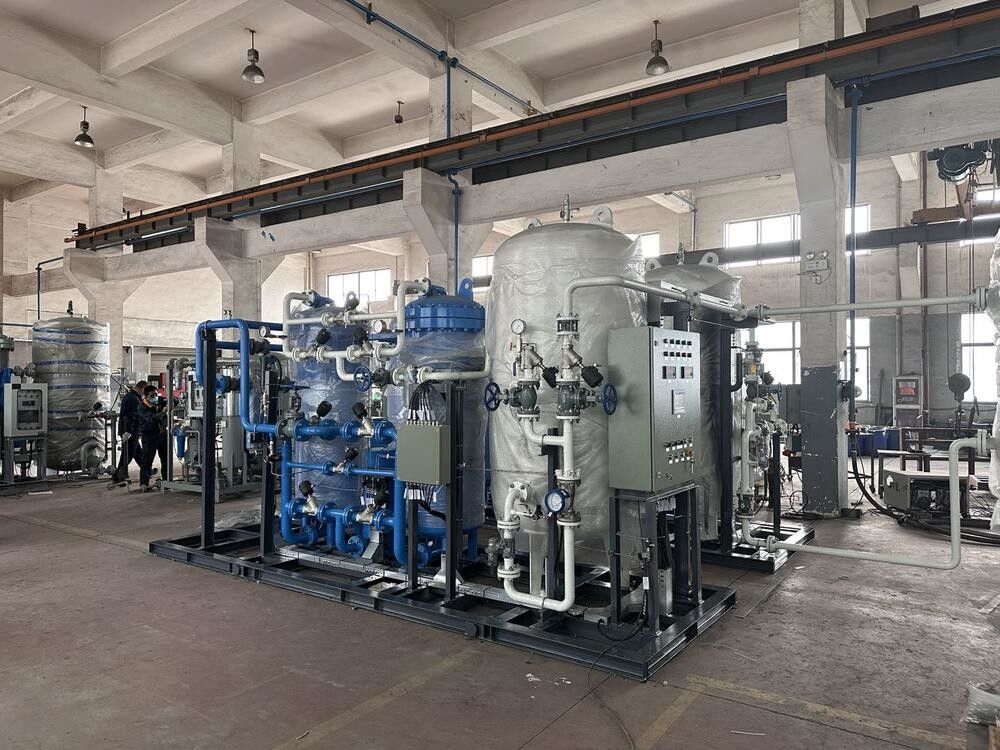

PSA Nitrogen Generator 10-5000 Nm3/h Energy Saving Industrial Grade

Product Details

Place of Origin: CHINA

Brand Name: GASPU

Certification: CCS, ISO,TS

Model Number: NG

Document: GASPU nitrogen generators.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10000/set

Packaging Details: Plywood, or other type

Delivery Time: 75 working days

Payment Terms: T/T

Supply Ability: 2 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Two Sets molecular sieve nitrogen generator, 5000 Nm3/h psa unit for nitrogen production, gaspu psa unit for nitrogen production


Keyword:	Psa Nitrogen Generator	Product Life:	10years Or Longer.
Sorbent:	Carbon Molecular Sieve	Design Code:	ASME/CE/GB
Certificates:	BV,,CCS,ISO,TS	Capacity:	10-5000 Nm3/h
Nitrogen Dew Point:	-40℃ Or -60℃	Configuration:	Stationary
Oem:	Offered	Advantage:	Energy Saving
Life Span:	8-10 Years	Atmospheric Dew Point:	≤－60℃
Production Capacity:	5-1000 M3/hour	Out Put Apacity:	1000Nm3/h
Operate Pressure:	0.1-0.5 Mpa	Voltage:	220V/380V/220V/380V/50-60HZ 22

Keyword:	Psa Nitrogen Generator
Product Life:	10years Or Longer.
Sorbent:	Carbon Molecular Sieve
Design Code:	ASME/CE/GB
Certificates:	BV,,CCS,ISO,TS
Capacity:	10-5000 Nm3/h
Nitrogen Dew Point:	-40℃ Or -60℃
Configuration:	Stationary
Oem:	Offered
Advantage:	Energy Saving
Life Span:	8-10 Years
Atmospheric Dew Point:	≤－60℃
Production Capacity:	5-1000 M3/hour
Out Put Apacity:	1000Nm3/h
Operate Pressure:	0.1-0.5 Mpa
Voltage:	220V/380V/220V/380V/50-60HZ 22

PSA Nitrogen Generator 10-5000 Nm3/h Energy Saving Industrial Grade

10-5000 Nm3/h Two Sets PSA Unit For Nitrogen Production

Product Specifications

Attribute	Value
Keyword	PSA Nitrogen generator
Product Life	10 years or longer
Sorbent	Carbon Molecular Sieve
Design Code	ASME/CE/GB
Certificates	BV, CCS, ISO, TS
Capacity	10-5000 Nm3/h
Nitrogen Dew Point	-40℃ or -60℃
Configuration	Stationary
OEM	Offered
Advantage	Energy Saving
Life Span	8-10 years
Atmospheric Dew Point	≤－60℃
Production Capacity	5-1000 m3/hour
Output Capacity	1000Nm3/h
Operate Pressure	0.1-0.5 Mpa
Voltage	220V/380V/50-60HZ

PSA Nitrogen Generators for Industrial Applications

Nitrogen generation systems are critical to the safe and efficient operation of industrial plants, providing inert gas for pipeline purging, equipment protection, and process control. Our Pressure Swing Adsorption (PSA) Nitrogen Generators deliver high-purity nitrogen on demand, eliminating reliance on external gas suppliers and reducing operational costs.

Key Features & Technical Advantages

High Efficiency & Energy Savings: PSA technology operates with energy consumption as low as 0.3-0.6 kWh/Nm³, significantly lower than traditional nitrogen delivery methods.
On-Site, Continuous Production: Generators start up in under 30 minutes and can operate 24/7, ensuring reliable supply for critical applications.
Compact Design & Easy Integration: Modular and space-efficient design suitable for both new installations and retrofits.
Customizable Purity & Flow Rates: Flexible nitrogen purity (95% to 99.999%) and flow rates (5 Nm³/h to 2,000 Nm³/h) to meet specific requirements.

Technical Parameters

Parameter	Specification
Nitrogen Flow Rate	50-200 Nm³/h (per unit)
Purity	95-99% (adjustable)
Operating Pressure	0.6-1.0 MPa (customizable)
Power Supply	380V/50Hz (three-phase)
Air Compressor Requirement	Integrated or external (1.5-2x nitrogen flow)
Efficiency	≥99% uptime, <0.5 kWh/Nm³ energy consumption
Control System	PLC-based with touchscreen HMI

Benefits of PSA Nitrogen Generators

Cost-Effective: Reduces long-term operational expenses by 30-60% compared to cylinder or liquid nitrogen.
Safety & Reliability: Minimizes risks of leaks, contamination, or supply disruptions with redundant components.
Environmental Sustainability: Lowers carbon footprint by reducing reliance on delivery trucks and minimizing waste.
Scalability: Modular design allows for easy capacity upgrades to meet future demands.

Frequently Asked Questions

What is the difference between PSA and membrane nitrogen generators?

PSA uses carbon molecular sieves to adsorb oxygen, delivering higher purity (up to 99.999%) and flow rates, making it ideal for large-scale industrial applications. Membrane systems offer lower purity (up to 99.5%) and are better suited for small, low-demand sites.

How often does the CMS (Carbon Molecular Sieve) need replacement?

CMS typically lasts 5-8 years under normal operating conditions. Regular maintenance extends its lifespan.

Can PSA generators operate in extreme climates?

Yes. Our PSA units are engineered with high-temperature resistant components and cooling systems, ensuring stable performance in temperatures up to 50°C.

Our PSA Nitrogen Generators offer a reliable, cost-effective, and sustainable solution for on-site nitrogen production. With customizable parameters, high efficiency, and global support, these systems are trusted by leading industrial companies worldwide.
